Longitudinal Control Systems

Longitudinal control systems control pitch about the lateral axis of the aircraft. Many aircraft use a con-ventional elevator system for this purpose. However, aircraft that operate in the higher speed ranges usually have a movable horizontal stabilizer. Both types of systems are discussed in the following text.

ELEVATOR CONTROL SYSTEM. -A typical conventional elevator control system is operated by the control stick in the cockpit, and is hydraulically powered by the elevator power mechanism.

The operation of the elevator control system is initiated when the control stick is moved fore or aft. When the stick is moved, it actuates the control cables that move the elevator control bell crank. The bell crank transmits the movement to the power mechanism through the control linkage. In turn, the power mechanism actuates a push-pull tube, which deflects the elevators up or down. If the hydraulic system fails, the cylinder can be disconnected. In this condition the controls work manually through the linkage of the mechanism to actuate the elevators.

HORIZONTAL STABILIZER CONTROL SYSTEM. given a variety of names by the various aircraft manufacturers. Some aircraft systems are defined as a unit horizontal tail (UHT) control systems, while others are labeled the stabilator control system. Regardless of the name, these systems function to control the aircraft pitch about its lateral axis.

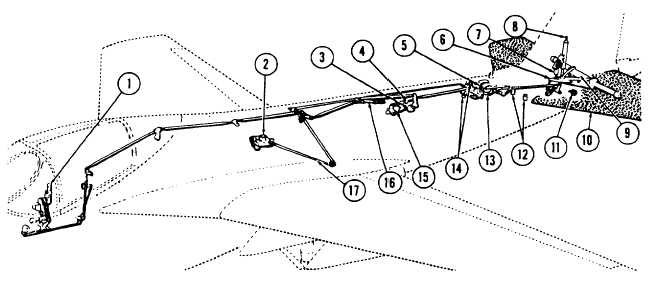

1. Control stick
2. Flap drive gearbox
3. Trim transmitter
4. Artificial feel bungee
5. Stabilizer shift mechanism
6. Walking beam
7. Load-relief bungee
8. Stabilizer actuator
9. Stabilizer support shaft
10. Stabilizer
11. Stabilizer position transducer
12. Filters
13. Negative bobweight
14. Clean and dirty switches
15. Electrical trim actuator
16. Static spring
17. Stabilizer shift mechanism cables

Figure 1-6.-Stabilizer control system.

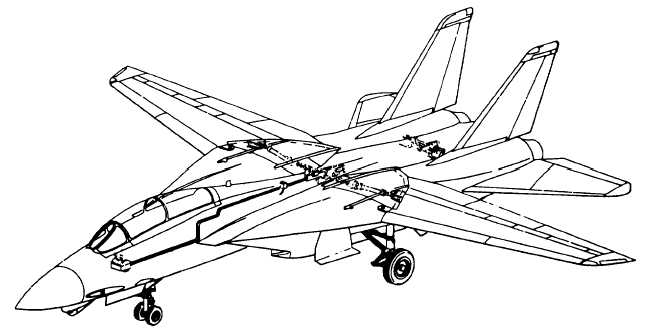

Figure 1-7.-Wing sweep control system (F-14).

The horizontal stabilizer control system of the aircraft shown in figure 1-6 is representative of the systems used in many aircraft. The slab-type stabilizer responds to fore-and-aft manual inputs at the control stick and to automatic flight control system inputs introduced at the stabilizer actuator. The actuator can operate in three modes: manual, series, or parallel.

Manual Mode. -In this mode, pilot input alone controls the power valve.

Series Mode. -In this mode, input signals from the automatic flight control system (AFCS) may be used independently or combined with manual inputs to control stabilizer movement.

Parallel Mode. -In this mode, input signals from the AFCS alone control stabilizer movement.
