Organic solids or semisolids are one of the particulate contaminants found in hydraulic systems. They are produced by wear, oxidation, or poly-merization (a chemical reaction). Organic solid contami-nants found in the systems include minute particles of O-rings, seals, gaskets, and hoses. These contami-nants are produced by wear or chemical reaction. Oxidation of hydraulic fluids increases with pressure and temperature. Antioxidants are blended into hydraulic fluids to minimize such oxidation. Oxidation products appear as organic acids, asphaltics, gums, and varnishes. These products combine with particles in the hydraulic fluid to form sludge. Some oxidation products are oil soluble and cause an increase in hydraulic fluid viscosity, while other oxidation products are not oil soluble and form sediment. Oil oxidation products are not abrasive.

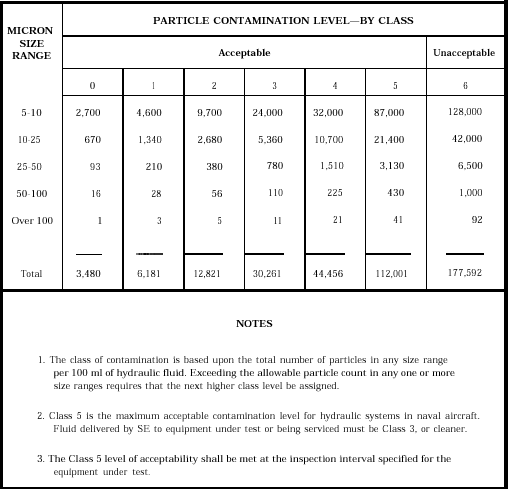

Table 4-1.Particle Contamination Level By Class


 These products cause system degradation because the sludge or varnishlike materials collect at close-fitting, moving parts, such as the spool and sleeve on servo valves. Collection of oxidation products at these points causes sluggish valve response.

Metallic solid contaminants are usually found in hydraulics systems. The size of the contaminants will range from microscopic particles to those you can see with the naked eye. These particles are the result of the wearing and scoring of bare metal parts and plating materials, such as silver and chromium. Wear products and other foreign metal particles, such as steel, aluminum, and copper, act as metallic catalysts in the formation of oxidation products. Fine metallic particles enter hydraulic fluid from within the system. Although most of the metals used for parts fabrication and plating are found in hydraulic fluid, the major metallic materials found are ferrous, aluminum, and chromium particles.

Hydraulic pumps usually contribute the most contamination to the system because of their high-speed, internal movement. Other hydraulic systems produce hydraulic fluid contamination due to body wear and chipping.

Hydraulic actuators and valves are affected by contamination. Large metallic or hard nonmetallic particles collect at the seal areas. These particles may groove the inside wall of the actuator body due to a scraping action. Smaller particles act as abrasives between the seals and the actuator body, causing wear and scoring. Eventually, the fluid leaks and the seals fail because the seal extrudes into the enlarged gap between the piston head and the bore of the actuator body. Once wear begins, it increases at a faster rate because wear particles add to the abrasive material. In a similar manner, metallic or nonmetallic parts may lodge in the poppets and poppet-seat portions of valves and cause system malfunction by holding valves open.
