BSU-86/B Bomb Fin

The BSU-86/B bomb fin is used with general-purpose bombs, Mk 82 Mods, or the practice bomb BDU-45/B (fig. 1-32). The fin provides a

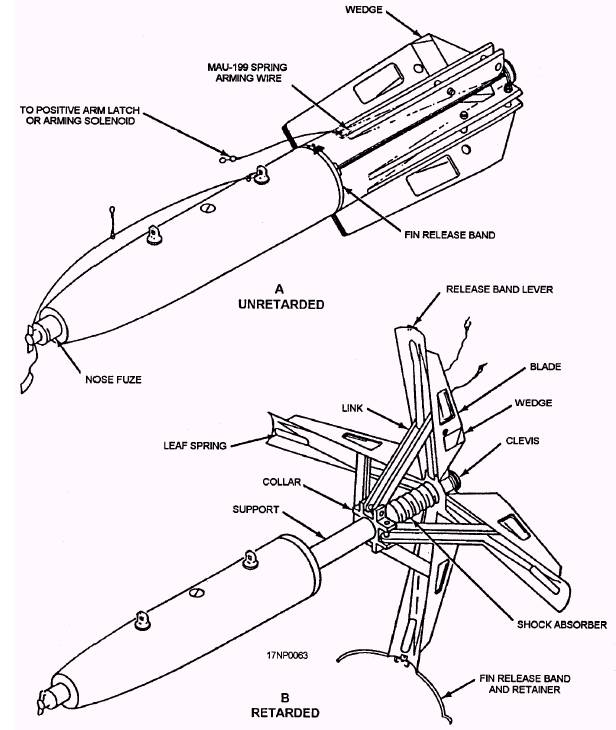

Figure 1-32.-BSU-86/B fin with Mk 82 bomb. 1-35

retarded (high-drag) or unretarded (low-drag) bomb delivery capability for the aircraft. The BSU-86/B fin is attached to the Mk 82 or BDU-45/B bomb by eight setscrews. A 25-degree wedge is located at the tips of each fin to impart spin. The airstream drives the fin open rapidly, when the MAU- 199/B spring arming wire (SAW) is activated Fin opening is initiated by the spring load under each fin blade.
