AN/ALE-39 Countermeasures Dispensing System

The system dispenses expendable payloads that consist of chaff, flares, or RF jammers, either individually or in groups. Three dispensers are installed in the aircraft, one on each side of the fuselage and one on the centerline on the fuselage bottom.

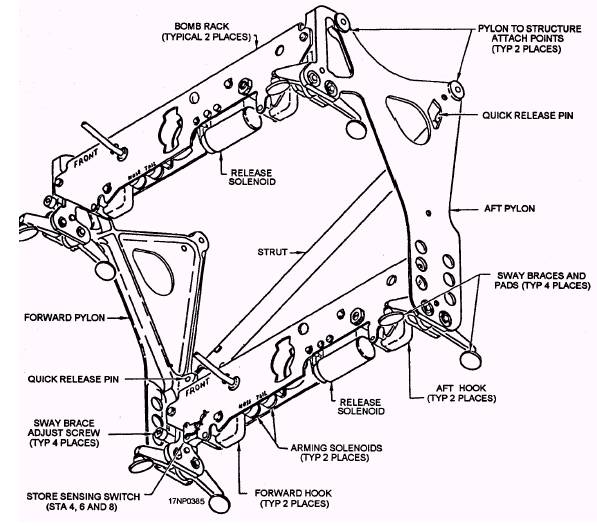

Figure 15-23.-Primary pylon assembly.

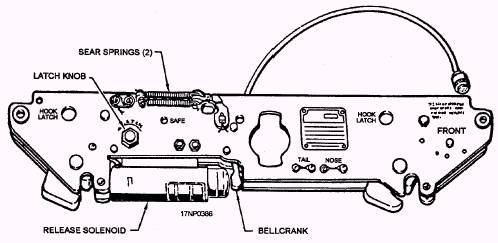

Figure 15-24.-BRU-12/A bomb rack.

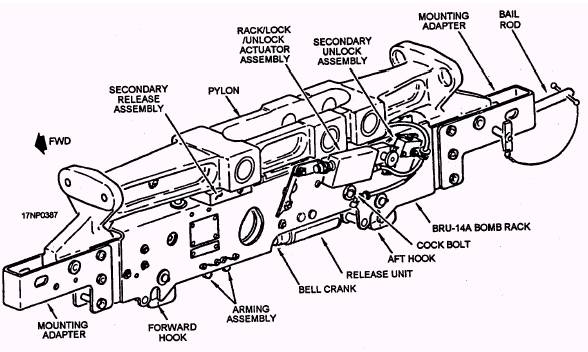

Figure 15-25.-P-3 1,000- or 2,000-pound class store pylon assembly with BRU-14/A bomb rack.

Search Store System

The search store system has the necessary equipment and accessories to carry and release sonobuoys. Also, the sono system can carry and release several other search-related stores.

Part of the search store system consists of unpressurized size A sonobuoy launch tubes (SLTs). These are installed in the underside of the aircraft fuselage. There are 60 SLTs. The SLTs are not accessible from the pressurized aircraft cabin (flight station); therefore, the designation "unpressurized."

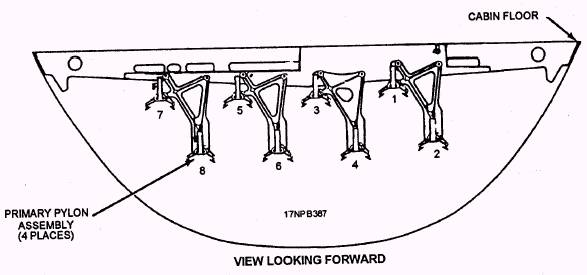

Figure 15-26.-Bomb bay configuration with four primary pylons.

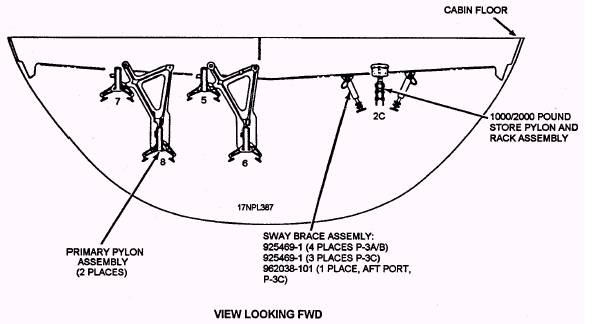

Figure 15-27.-Bomb bay configuration with two primary pylons and one 1,000- or 2,000-pound stores pylon.

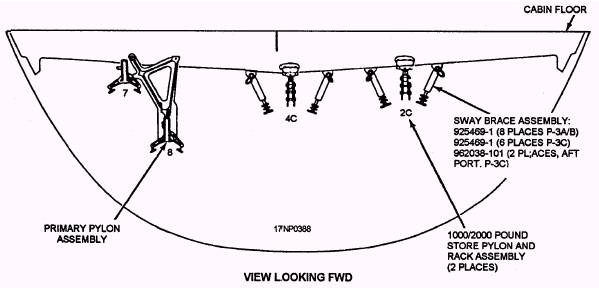

Figure 15-28.-Bomb bay configuration with one primary pylon and two 1,000- or 2,000-pound store pylons.

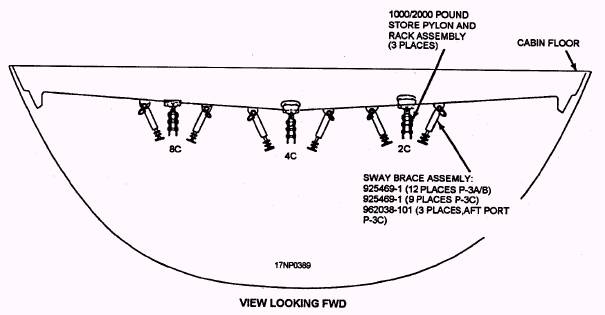

Figure 15-29.-Bomb bay configuration with three 1,000- or 2,000-pound store pylons.

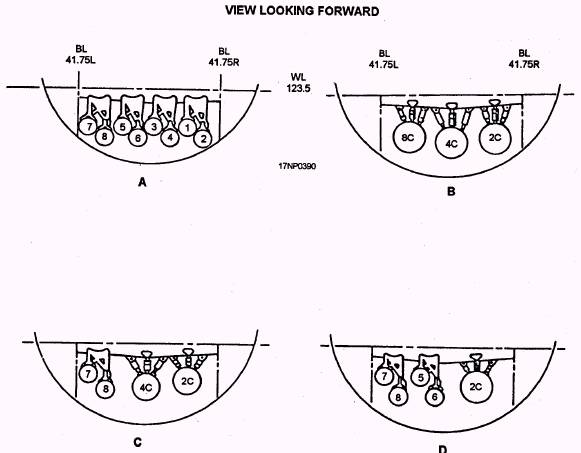

Figure 15-30.-Various bomb bay configurations.

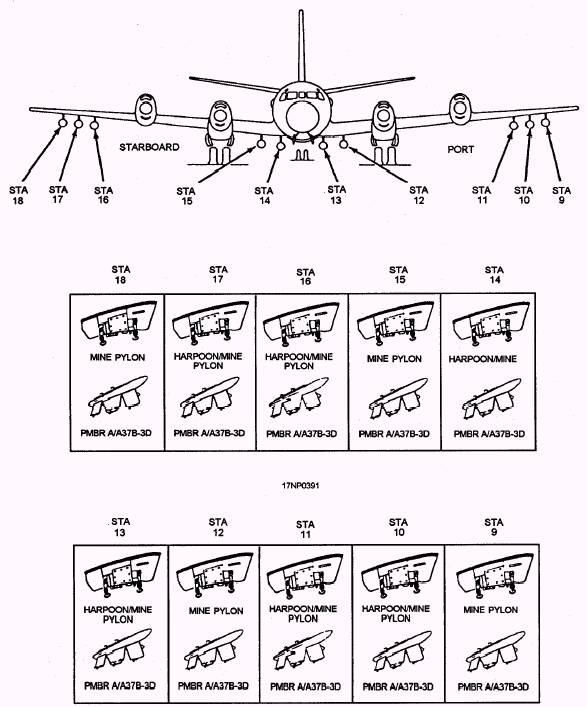

Figure 15-31.-Wing station configurations.

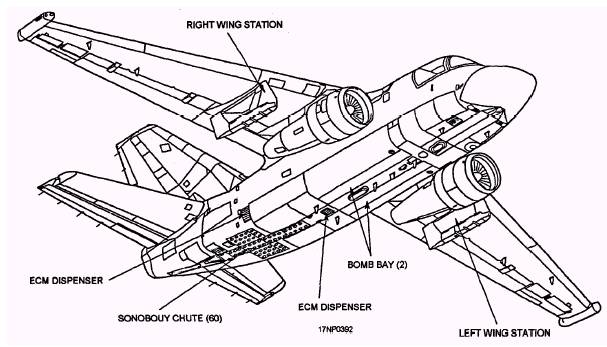

Figure 15-32.-S-3 aircraft configuration.

The SLTs maybe reloaded only from the outside of the aircraft. Look at figure 15-33. It shows the arrangement of the SLTs as you look up at the lower fuselage.
