LASER GUIDED TRAINING ROUND (LGTR)

The LGTR (fig. 1-45) is designed to provide realistic laser guided bomb (LGB) tactical training. The training round consists of a guidance and control section, pneumatic controls for moveable control surfaces, power supply, and a standard practice bomb signal cartridge. Once initiated, the system cannot be reset. The signal cartridge (spotting charge) is impact initiated and does not require safety or cotter pins.

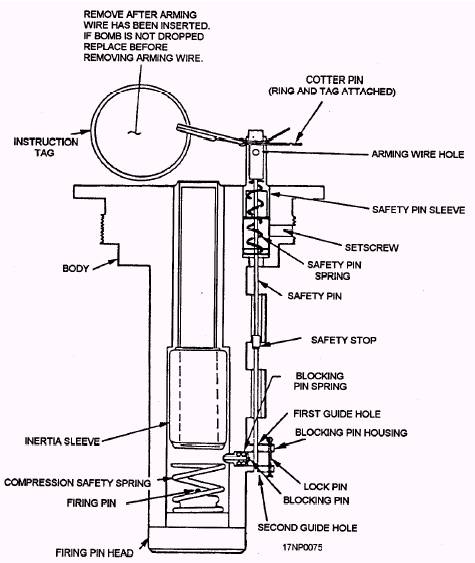

Figure 1-44.-Mk 89 Mod 0 bomb spotting charge adapter.

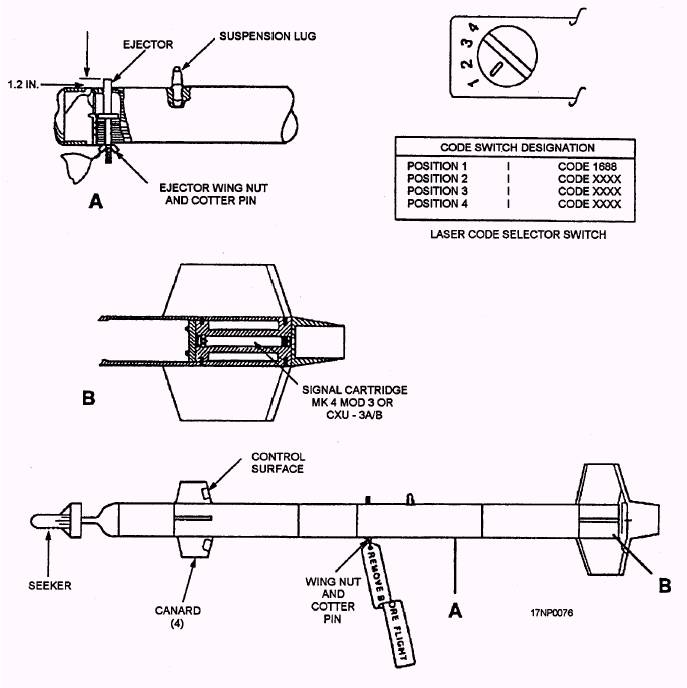

Figure 1-45.-Laser guided training round (LGTR).
