APPENDIX II

FORMULAS AND CONVERSlON TABLES

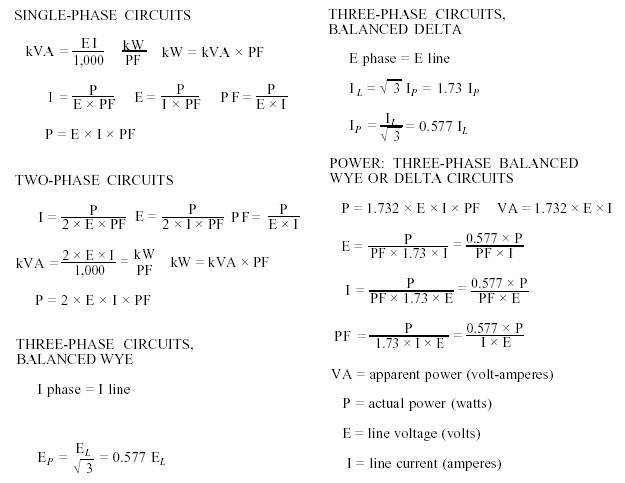

FORMULAS

CONVERSION FACTORS AND CONSTANTS

Temperature

Power

1 kilowatt = 1.341 horsepower

1 horsepower = 746 watts

OHM'S LAW - DIRECT CURRENT

OHM'S LAW - ALTERNATING CURRENT

SINUSOIDAL VOLTAGES AND CURRENTS

Effective Value = 0.707 Peak Value

Average Value = 0.637 Peak Value

Peak Value = 1.414 Effective Value

Effective Value = 1.11 Average Value

Peak Value = 1.57 Average Value

Average Value = 0.9 Effective Value

TRIGONOMETRIC FORMULAS

SPEED VS. POLES FORMULAS

POWER FACTOR
