Kirchhoff's current law, as previously stated, says that at any junction point in a circuit the current arriving is equal to the current leaving. Let us consider five currents entering and leaving a junction shown as P (Figure 43). This junction is also considered a node.

Assume that all currents entering the node are positive, and all currents that leave the node are negative. Therefore, 1₁, 1₃, and 1₄ are positive, and 1₂ and 1₅ are negative. Kirchhoff's Law also states that the sum of all the currents meeting at the node is zero. For Figure 43, Equation (2-19) represents this law mathematically.

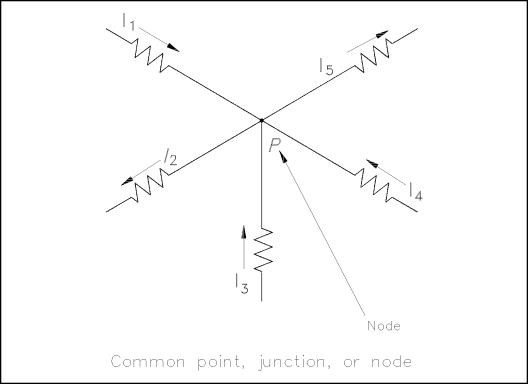

Figure 43 Node Point

By solving node equations, we can calculate the unknown node voltages. To each node in a circuit we will assign a letter or number. In Figure 44, A, B, C, and N are nodes, and N and C are principal nodes. Principal nodes are those nodes with three or more connections. Node C will be our selected reference node. V_AC is the voltage between Nodes A and C; VBC is the voltage between Nodes B and C; and V_NC is the voltage between Nodes N and C. We have already determined that all node voltages have a reference node; therefore, we can substitute V_A for V_AC, V_B for V_BC,and V_N for V_NC.

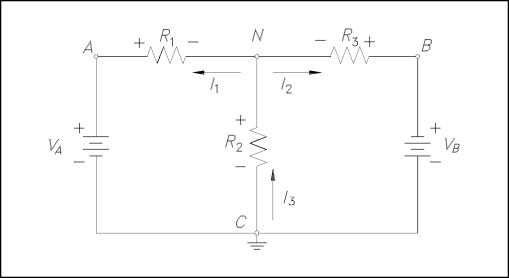

Figure 44 Circuit for Node Analysis

Assume that loop currents 1₁ and I₂ leave Node N, and that 13 enters Node N (Figure 44). From Kirchhoff's current law:

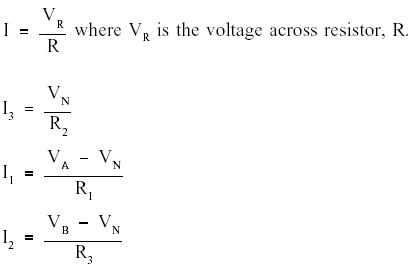

Using Ohm's Law and solving for the current through each resistor we obtain the following.

Substitute these equations for 11, 12, and 1₃ into Kirchhoff's current equation (2-20) yields the following.

The circuit shown in Figure 45 can be solved for voltages and currents by using the node-voltage analysis.

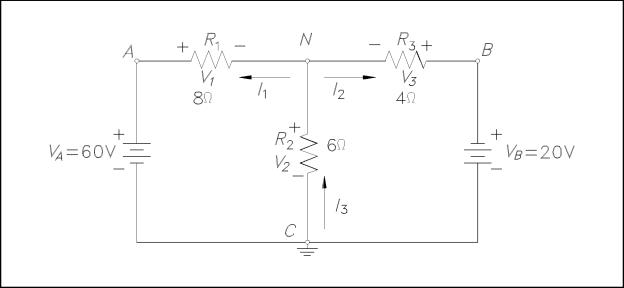

Figure 45 Node - Voltage Analysis

First, assume direction of current flow shown. Mark nodes A, B, C, and N, and mark the polarity across each resistor.

Second, using Kirchhoff's current law at Node N, solve for V_N.

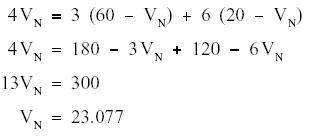

Clear the fraction so that we have a common denominator:

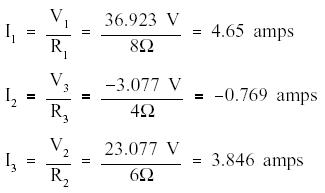

Third, find all voltage drops and currents.

The negative value for V₃ shows that the current flow through R₃ is opposite that which was assumed and that the polarity across R₃ is reversed.

The negative value for 1₃ shows that the current flow through R₃ is opposite that which was assumed.
