In a lead-acid battery, two types of lead are acted upon electro-chemically by an electrolytic solution of diluted sulfuric acid (H₂SO₄)' The positive plate consists of lead peroxide (PbO₂), and the negative plate is sponge lead (Pb), shown in Figure 4.

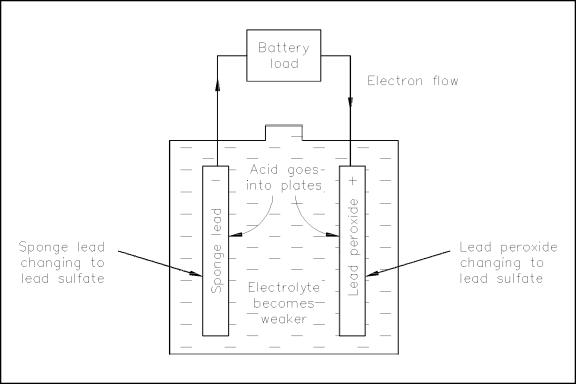

Figure 4 Chemical Action During Discharge

When a lead-acid battery is discharged, the electrolyte divides into H₂ and SO₄. The H₂ will combine with some of the oxygen that is formed on the positive plate to produce water (H₂O), and thereby reduces the amount of acid in the electrolyte. The sulfate (S0₄) combines with the lead (Pb) of both plates, forming lead sulphate (PbS0₄), as shown in Equation (4-1).

As a lead-acid battery is charged in the reverse direction, the action described in the discharge is reversed. The lead sulphate (PbS0₄) is driven out and back into the electrolyte (H₂SO4). The return of acid to the electrolyte will reduce the sulphate in the plates and increase the specific gravity. This will continue to happen until all of the acid is driven from the plates and back into the electrolyte, as shown in Equation (4-2) and Figure 5.

Figure 5 Chemical Action During Charging

As a lead-acid battery charge nears completion, hydrogen (H₂) gas is liberated at the negative plate, and oxygen (O₂) gas is liberated at the positive plate. This action occurs since the charging current is usually greater than the current necessary to reduce the remaining amount of lead sulfate on the plates. The excess current ionizes the water (H₂O) in the electrolyte. Since hydrogen is highly explosive, it is necessary to provide adequate ventilation to the battery whenever charging is in progress. Also, no smoking, electric sparks, or open flames are allowed near a charging battery.

The decrease in specific gravity on discharge is proportional to the ampere-hours discharged. While charging a lead-acid battery, the rise in specific gravity is not uniform, or proportional, to the amount of ampere-hours charged (Figure 6).

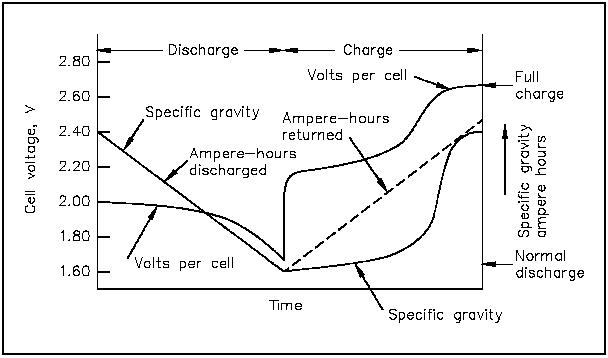

Figure 6 Voltage and Specific Gravity During Charge and Discharge

The electrolyte in a lead-acid battery plays a direct role in the chemical reaction. The specific gravity decreases as the battery discharges and increases to its normal, original value as it is charged. Since specific gravity of a lead-acid battery decreases proportionally during discharge, the value of specific gravity at any given time is an approximate indication of the battery's state of charge. To determine the state of charge, compare the specific gravity, as read using a hydrometer, with the full charge value and the manufacturer's published specific gravity drop, which is the decrease from full to nominal charge value.

Example:

A lead-acid battery reads 1.175 specific gravity. Its average full charge specific gravity is 1.260 and has a normal gravity drop of 120 points (or. 120) at an 8 hour discharge rate.

Solution:

Fully charged - 1.260 Present charge - 1.175

The battery is 85 points below its fully charged state. It is therefore about 85/120, or 71%, discharged.

Summary

Battery theory is summarized below.

Battery Theory Summary

The purpose of a battery is to store chemical energy and to convert this chemical energy into electrical energy when the need arises.

A voltaic cell develops a potential difference when electrodes of two different metals are immersed in an electrolyte. One electrode accumulates a positive charge. The potential difference is due to the difference in charge between the two electrodes.

The chemical equation for a lead-acid battery during discharge is:

The chemical equation for a lead-acid battery during charge is:

When a lead-acid battery is discharged, electrolyte and the active material on the plates of the battery are consumed to produce water and lead sulphate.

When a lead-acid battery is charged, electrical energy is added to the battery, causing the water and lead sulphate to be consumed and produce electrolyte and active material.

Since specific gravity of a lead-acid battery decreases proportionally during discharge, the value of specific gravity at any given time is an approximate indication of the battery's state of charge.
