The exact effect of control rods on reactivity can be determined experimentally. For example, a control rod can be withdrawn in small increments, such as 0.5 inch, and the change in reactivity can be determined following each increment of withdrawal. By plotting the resulting reactivity versus the rod position, a graph similar to Figure 9 is obtained. The graph depicts integral control rod worth over the full range of withdrawal. The integral control rod worth is the total reactivity worth of the rod at that particular degree of withdrawal and is usually defined to be the greatest when the rod is fully withdrawn.

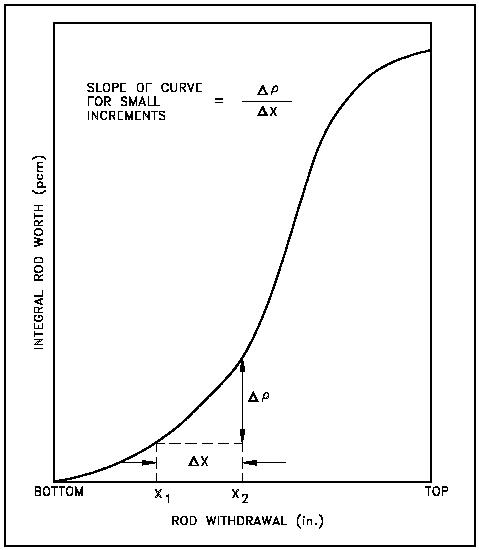

Figure 9 Integral Control Rod Worth

The slope of the curve (), and therefore the amount of reactivity inserted per unit of withdrawal, is greatest when the control rod is midway out of the core. This occurs because the area of greatest neutron flux is near the center of the core; therefore, the amount of change in neutron absorption is greatest in this area. If the slope of the curve for integral rod worth in Figure 9 is taken, the result is a value for rate of change of control rod worth as a function of control rod position. A plot of the slope of the integral rod worth curve, also called the differential control rod worth, is shown in Figure 10. At the bottom of the core, where there are few neutrons, rod movement has little effect so the change in rod worth per inch varies little. As the rod approaches the center of the core its effect becomes greater, and the change in rod worth per inch is greater. At the center of the core the differential rod worth is greatest and varies little with rod motion. From the center of the core to the top, the rod worth per inch is basically the inverse of the rod worth per inch from the center to the bottom.

Differential control rod worth is the reactivity change per unit movement of a rod and is normally expressed as p/inch, per inch, or pcm/inch. The integral rod worth at a given withdrawal is merely the summation of all the differential rod worths up to that point of withdrawal. It is also the area under the differential rod worth curve at any given withdrawal position.

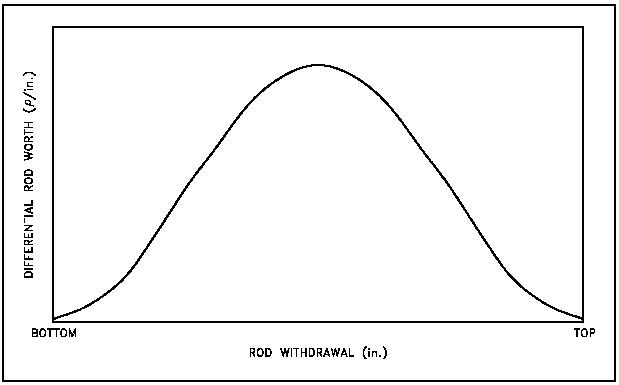

Figure 10 Differental Control Rod Worth

The following exercises are intended to reinforce an understanding of the concepts of integral and differential rod worth.

Example 1:

Using the integral rod worth curve provided in Figure 11, find the reactivity inserted by moving the rod from 12 inches withdrawn out to 18 inches withdrawn.

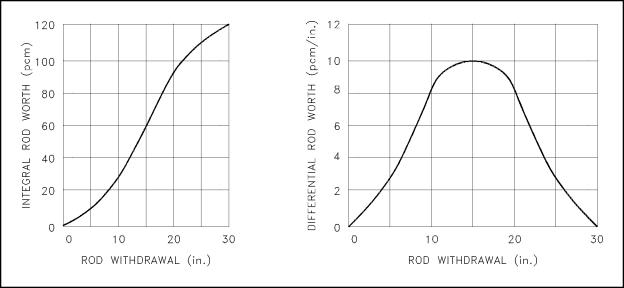

Figure 11 Rod Worth Curves for Example Problems

Solution:

The integral rod worth at 12 inches is 40 pcm and the integral rod worth at 18 inches is 80 pcm.

Example 2:

Using the differential rod worth curve provided in Figure 11, calculate the reactivity inserted by moving the rod from 10 inches withdrawn to 6 inches withdrawn.

Solution:

The solution is basically given by the area under the curve for the interval. The answers obtained in the following approximation may vary slightly depending upon the degree of approximation.

Method 1. Treating the range from 10 inches to 6 inches as a trapezoid, that is, taking the end values of pcm/inch and multiplying their average by the 4 inches moved yields the following.

This is negative because the rod was inserted.

Method 2.

Using the central value of rod position at 8 inches yields an average rod worth of 5.5 pcm/inch. Multiplying by the 4 inches of rod travel yields the answer.

(5.5 pcm/in.)(4 in.) = -22 pcm

Method 3.

Breaking the rod travel total into two parts (10 inches to 8 inches and 8 inches to 6 inches) yields:

In this example the various approximations used did not cause any difference because the problem deals with a section of the curve with an approximately constant slope. To obtain the value over the interval between 8 inches and 20 inches, however, would require the use of several subintervals (as in the last approximation) to obtain an accurate answer.

Example 3:

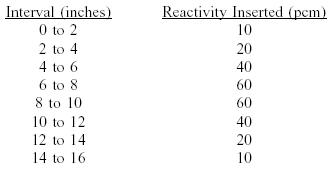

For the differential rod worth data given below, construct differential and integral rod worth curves.

Solution:

Differential rod worth:

For each interval, the number of pcm/inch must be determined. For example, in the first interval (0 inches to 2 inches), 10 pcm is added. Therefore, the differential rod worth equals an average 5 pcm/inch. This value of differential rod worth is plotted at the center of each interval. The center of the interval 0 inches to 2 inches is 1 inch. The values of pcm/inch for each interval are then listed as shown below and plotted on Figure 12.

Integral rod worth:

To plot the integral rod worth, merely develop a cumulative total of the reactivity added after each interval and plot the summed reactivity insertion vs. rod position as shown in Figure 12.

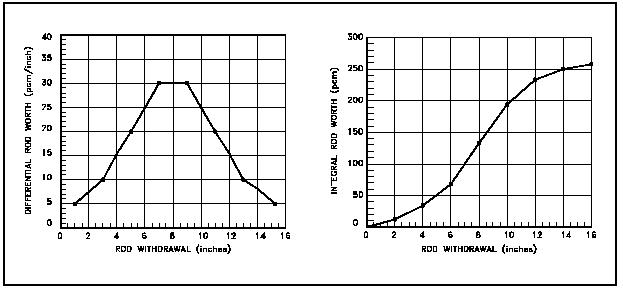

Figure 12 Rod Worth Curves From Example 3

If an integral rod worth curve is supplied, a differential rod worth curve can be generated from the integral rod worth data. Merely select a convenient interval of rod withdrawal, such as 1 inch or 2 inches. Then, determine from the curve the amount of reactivity added for each constant interval of rod withdrawal.A plot of this reactivity addition versus rod withdrawal represents differential rod worth.
