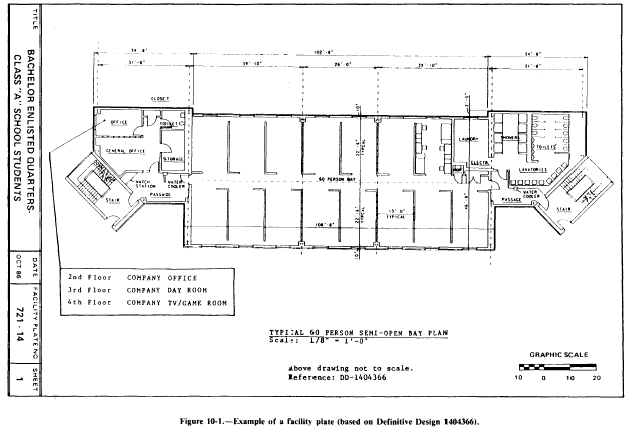

DEFINITIVE DESIGNS are drawings of typical buildings and structures you will find in NAVFAC P-272, elevations, and utility requirements for general guidance to A/E contractors or in-house staff who prepare project drawings and specifications. Part 2 of P-272 contains advance designs of more complex facilities that may include equipment layouts, piping diagrams, electrical schematics, and other critical requirements for specific guidance in preparing project designs. Both parts, however, are used in conjunction with NAVFACENGCOM criteria manuals, handbooks, and guide specifications listed in P-34, Engineering and Design Criteria for Navy Facilities. Included in the facility type of designs are single-line schematics, bubble diagrams, or graphics based on definitive drawings called FACILITY PLATES. These plates (fig. 10-1) are used to show functional relationships or building layouts, such as detailed information concerning the design of individual rooms within a specific type of facility. Facility plates may show the location of all of the equipment and furnishings within a room, the location of utilities serving the room, the location and size of doors and windows, a ceiling plan reflecting the location of lighting fixtures, and other technical design information about the room. Facility plates are used instead of the definitive design whenever the plates effectively convey the necessary design data or whenever definitive are scheduled to be revised, developed, or validated. You will find most of the facility plates within the pages of criteria or design manuals (DMs).

These designs are detailed working drawings of predominantly specialized structures for unique naval facilities, such as waterfront structures, aircraft operations and maintenance facilities, ammunition storage facilities, and fleet moorings.

STANDARD DESIGNS form a part of the construction documents requiring only supplemental drawings for adapting the facility to the specific site. You can modify these drawings (except for ammunition facilities) as necessary to meet on-site requirements. Ammunition and explosive design standards may NOT be modified without the approval of the Naval Facilities Engineering Command (NAVFACENGCOM). When standard designs are used for a construction project, with or without modifications, a new title block and drawing number are required. The cognizant EFD assigns these numbers.

Another source of detailed construction drawings, NOT definitive, is found in NAVFAC P-437, drawings of pre-engineered structures used to satisfy the Naval Construction Force (NCF) at advanced bases in peacetime and during contingency operations. Thus, if a facility is required to meet tactical and strategic situations, construction planners can easily and readily identify and determine specific requirements and provide support. Other useful information for SEABEE planners, such as crew size, man-hours by skill, land area, and fuel necessary to make a component, facility, or assembly operational, is contained within the guide. As an EA, you should realize the importance of becoming familiar with the contents of NAVFAC P-437.

All NAVFACENGCOM project drawings are prepared according to DOD-STD-100. The policy and procedures for preparing and developing these drawings are outlined in the military hand-book MIL-HDBK-1006/1. Project drawings must be complete, accurate, and explicit since they (together with the design specifications) form the basic ingredients used in contracts for the construction of naval facilities. EAs and in-house planners also benefit from clear and consistent project drawings, especially when revising project drawings.

The design criteria for project drawings are set by NAVFACENGCOM. These criteria also apply to definitive designs and standard drawings and also to project specifications. EFDs and A/Es are allowed latitude in new concepts, creative thinking, and the use of new materials; however, when deviations from mandatory criteria are considered, they need to obtain prior clearance from NAVFACENGCOM headquarters.

For dimensions on project drawings, you may use customary U.S. dimensions unless the project is in an area in which System International (SI) is normally used. The International System of Units is the internationally accepted "metric" system. Use of the word metric is no longer an accepted practice. For details of the proper use of SI units, refer to ASTM E380-82, Recommended Practice for the Use of Metric (SI) Units in Building Design and Construction, design.

Project drawings for buildings and structures are arranged in the following order:

1. TITLE SHEET AND INDEXContains specific project title and an index of drawings. (Used only for projects containing 60 or more drawings).

2. PLOT OR VICINITY PLANSContain either plot or vicinity plans or both, as well as civil and utility plans. For small projects, this sheet should include an index of the drawings.

3. LANDSCAPE AND IRRIGATION (if applicable).

4. ARCHITECTURAL (including interior design as applicable).

6. MECHANICAL (heating, ventilation, and air conditioning).

The following should be used for NAV-FACENGCOM drawings:

Flat         17 x 22 (C size) - When small sheets are required

Flat         22 x 34 (D size) - for project and other drawings

The title block indicates the name and location of the activity preparing the drawing, drawing title and number, approval within the activity and by an activity other or different than the source preparing the drawing, and other information relative to preparation of the drawing, such as the predominant scale used, drawing size letter designation, and sheet number for multiple sheet drawings. The code identification number or Federal Supply Code for Manufacturers (FSCM) "80091" is required in the title block of all NAV-FACENGCOM drawings. Vertical title block format is used for all 22- by 34-in. (D-size) drawings; whereas, use of vertical title block is optional for 28- by 40-in. (F-size) drawings. The layout and format for title blocks are shown in chapter 3, ANSI Y14.1-1980.
