The T square gets its name from its shape. It consists of a long, straight strip, called the blade, which is mounted at right angles on a short strip, called the head. The head is mounted under the blade so that it will fit against the edge of the drawing board while the blade rests on the surface. T squares vary in size, ranging from 15 in. to 72 in. in length, with the 36-in. length being the most common.

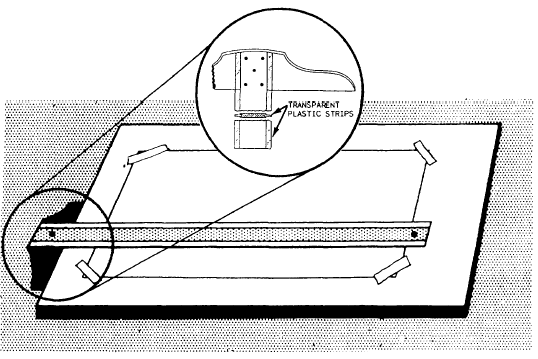

The T square shown in figure 2-7 is typical of the ones used by an EA. The head is made of hardwood and the blade, usually of maple with a natural or mahogany finish. The edges of the blade are normally transparent plastic strips glued into grooves on both edges of the blade, as shown in the cross section in figure 2-7. This allows the edge of the T square to ride above the drawing as the blade is moved up or down the board. This arrangement is a great advantage when you are drawing with ink. Since the tip of the ruling pen does not come in contact with the blade, but is below it, ink cannot be drawn under the blade to blot the drawing.

The T square is used for drawing horizontal lines only. Always draw lines along the upper edge of the blade. The T square also serves as a base for the triangle when vertical and inclined lines are drawn. Some T squares are designed with adjustable heads to allow angular adjustments of the blade.

Handle your T square carefully. If dropped, it may be knocked out of true and become useless. Additionally, to prevent warping, hang the T square by the hole in the end of the blade or lay it on a flat surface so that the blade rests flat. Before beginning a new job, you should test the top edge of your T square for warp or nicks by drawing a sharp line along the top of the blade.

Turn the T square over and redraw the line with the same edge. If the blade is warped, the lines will not coincide.

If the blade swings when the head is held firmly against the edge of the drawing board, the blade may be loose where it is joined to the head, or the edge of the T square head may be warped. You can usually tighten a loose blade by adjusting the screws that connect it to the head, but if it is out of square, warped, or in bad condition, you should select a new T square.

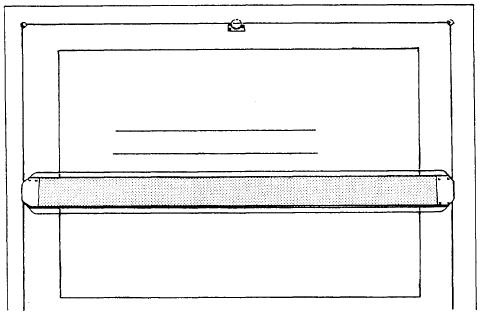

Many draftsmen prefer to use a PARALLEL STRAIGHTEDGE (fig. 2-8) rather than a T square. The primary purpose of the parallel straightedge is the same as the T square. The parallel straightedge is a laminated maple blade with transparent plastic edges similar to those on the T square. The parallel straightedge uses a system of cords and pulleys so that it is supported at both ends by a cord tacked to the drawing board. You can move the straightedge up or down the board with pressure at any point along its length and maintain parallel motion automatically. It comes complete with cord, tacks, cord tension adjuster, and mounting instructions. Some straightedges, like the one shown in figure 2-8, are equipped with a cord lock on one end of the blade. The straightedge is locked into place by turning the cord lock clockwise. This permits use of the straightedge on an inclined board. It also prevents accidental movement when you are inking or using mechanical lettering devices. The advantages of the parallel straight-edge become particularly significant when you are working on large drawings. While the T square works well for small work, it becomes unwieldy and inaccurate when you are working on the far right-hand side of large drawings.
