Axonometric Projection

Axonometric single-plane projection is another way of showing an object in all three

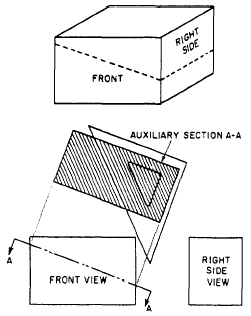

Figure 5-35 .-Diagonal hatching on an auxiliary section.

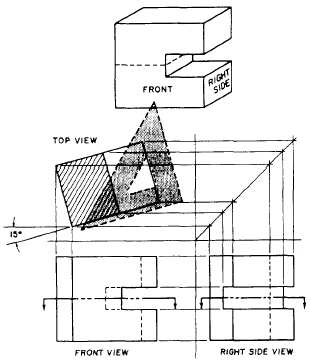

Figure 5-36.-Diagonal hatching on a revolution.

dimensions in a single view. Theoretically, axonometric projection is orthographic projection in that only one plane is used and the projection lines are perpendicular to the plane of projections. It is the object itself, rather than the projection lines, that is inclined to the plane of projection.
