DRAFTING: PROJECTIONS AND SKETCHING

This chapter deals with the theory of projections and methods of preparing projection drawings. By applying basic geometric construction (described in the preceding chapter) to the various projection methods, you should be able to clearly represent any given object or structure on paper. Although the methods discussed here are basic to all drawings, they are easily adapted to construction drawings. This chapter also covers various techniques of freehand sketching. You will learn how to prepare quick sketches to convey or develop your ideas.

Every object or structure you draw has length, width, and depth, regardless of its size. However, you must draw the object or structure on paper, which is a flat two-dimensional plane. To show the three dimensions by lines alone, you must use either a system of related views or a single pictorial projection. You must be able to show clearly the shape of the object, give the exact size of each part, and provide necessary information for constructing the object.

In theory, projection is done by extending lines of sight (called projection lines) from the eye of the observer, through lines and points of an object being viewed, to the plane of projection.

To satisfy requirements for preparing single-or multi-view drawings, you may use two main types of projection: PARALLEL and PERSPECTIVE (fig. 5-1). PARALLEL projection

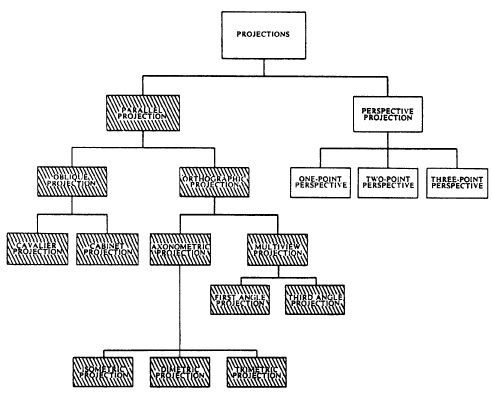

Figure 5-1.Classification of major projections.

Figure 5-2.-Types of projections.

(fig. 5-2) is further classified into subtypes according to the direction of its projection lines relative to the plane of projection. If the projection lines, in addition to being parallel to each other, are perpendicular (normal) to the plane of projection, the result is an oblique to the plane of projection, the result is an oblique projection. To better understand the theory of projection, you must become familiar with certain elements that are common to each type of projection. Some of these elements are defined below.
