Precast Concrete Joists, Beams, Girders,

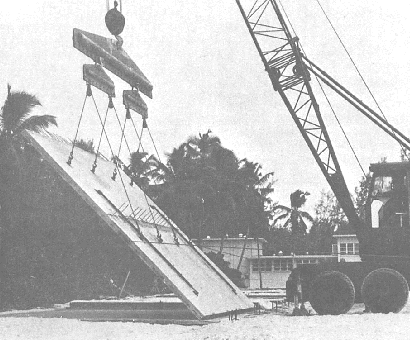

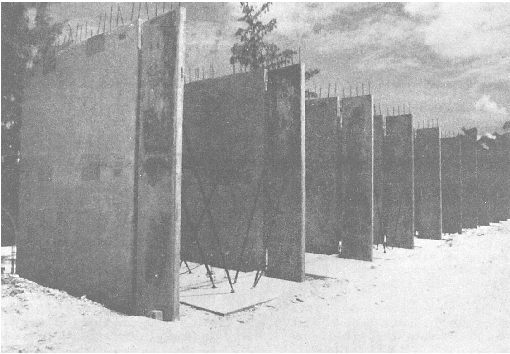

and Columns Small, closely spaced beams used in floor construction are usually called JOISTS; however, these same beams when used in roof constructionFigure 7-17.-Precast panels being erected by use of crane and spreader bars. Figure 7-18.-Precast panels in position. are called PURLINS. The cross sections of these beams are shaped like a T or an I. The ones with the inverted T-sections are usually used in composite construction where they support cast-in- place floor or roof slabs. BEAMS and GIRDERS are terms usually applied to the same members, but the one with the longer span should be referred to as the girder. Beams and girders may be conventional precast design or prestressed. Most of the beams will be I-shaped unless the ends are rectangular. The T-shaped ones can also be used. Precast concrete COLUMNS may be solid or hollow. If the hollow type is desired, heavy card-board tubing should be used to form the core. A looped rod is cast in the column footing and projects upward into the hollow core to help hold the column upright. An opening should be left in the side of the column so that the column core can be filled with grout. This causes the looped rod to become embedded to form an anchor. The opening is dry packed. |
||
