One of the most versatile plastic and polyvinyl resin pipes is the polyvinyl chloride (PVC). PVC pipes are made of tough, strong thermoplastic material that has an excellent combination of physical and chemical properties. Its chemical resistance and design strength make it an excellent material for application in various mechanical systems. Sometimes polyvinyl chloride is further chlorinated to obtain a stiffer design, a higher level of impact resistance, and a greater resistance to extremes of temperature. A CPVC pipe (a chlorinated blend of PVC) can be used not only in cold-water systems, but also in hot-water systems with temperatures up to 210F. Economy and ease of installation make plastic pipe popular for use in either water distribution and supply systems or sewer drainage systems.

GALVANIZED PIPE. Galvanized pipe is commonly used for the water distributing pipes inside a building to supply hot and cold water to the fixtures. This type of pipe is manufactured in 21-ft lengths. It is GALVANIZED (coated with zinc) both inside and outside at the factory to resist corrosion. Pipe sizes are based on nominal INSIDE diameters. Inside diameters vary with the thickness of the pipe. Outside diameters remain constant so that pipe can be threaded for standard fittings.

CAST-IRON WATER PIPE. Cast-iron pipe, sometimes called cast-iron pressure pipe, is used for water mains and frequently for service pipe up to a building. Unlike cast-iron soil pipe, cast-iron water pipe is manufactured in 20-ft lengths rather than 5-ft lengths. Besides bell-and-spigot joints, cast-iron water pipes and fittings are made with either flanged, mechanical, or screwed joints. The screwed joints are used only on small-diameter pipe.

Fittings vary according to the type of piping material used. The major types commonly used in water service include elbows, tees, unions, couplings, caps, plugs, nipples, reducers, and adapters. Some typical copper pipe fittings are shown in figure 8-2. Plastic pipe fittings (fig. 8-3) that are similar in appearance to those used with metal piping are available. Some plastic pipes can

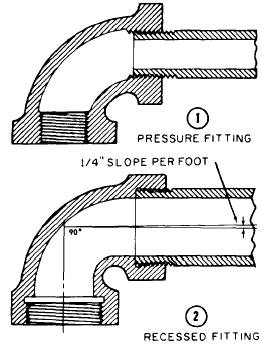

also be adapted to metal pipe fittings. The fittings used on either steel pipe or wrought iron are generally made of malleable iron or cast iron. There are two types of iron pipe fittings used: the PRESSURE type and the RECESSED type (fig. 8-4).
