MULTIWIRE (CABLE) CONDUCTORS. A multiwire conductor, called a CABLE,
is an assembly of two or more
conductors insulated from each
other with additional insulation or a protective
shield formed or wound around the group
of conductors. The covering or insulation for
individual wires is color coded for proper identification.
Figure 9-14 shows common types of
multiwire conductors.

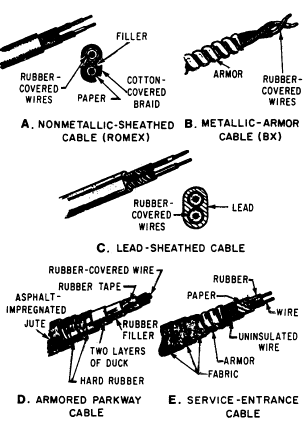

Figure 9-14.Types of multiwire insulated conductors (cables). Nonmetallic-sheathed cable (NMC) (fig. 9-14, view A) is more commonly called by the trade name "ROMEX," ROMEX (NMC) comes in sizes No. 14 through 2 for copper conductors and No. 12 through 2 for aluminum or copper-clad aluminum conductors. This type of cable comes with a bare (uninsulated) ground wire. The ground wire is laid in the interstices (intervals) between the circuit conductors and under the outside braid. The ground wire is used to ensure the grounding of all metal boxes in the circuit, and also to furnish the ground for the grounded type of convenience outlets that are required in Navy installations. Nonmetallic-sheathed cable is used for temporary wiring in locations where the use of conduit would be unfeasible. The use of Romex as service entrance cable, in garages, in storage battery rooms, imbedded in poured concrete, or in any hazardous area is NOT authorized. Metallic-armored cable (fig. 9-14, view B), also called BX cable, is used in naval installations for temporary wiring, but unlike Romex, its use in commercial installation is restricted. Most city building codes restrict the use of BX cables to oil burner control circuits and the like. A difficulty with BX is the fact that it tends to ground after installation. Small metal burrs on, the armor can, because of vibration, penetrate the insulation and cause a ground. BX cables come in sizes from No. 14 to 2 AWG, and each cable may contain one, two, three, or four conductors. The armor on the cable furnishes a continuous ground between boxes. Insulation As mentioned earlier, electrical conductors are available with various kinds of insulating materials. Some of these are rubber, thermo-plastic, and varnished cambric. Special types of paper, glass, silk, and enamel are also used to insulate conductors, but with less frequency than those previously mentioned. The NEC recommends insulation of certain kinds for use in dry, damp, and wet locations. Underground installations, those in concrete slabs and masonry, those in direct contact with the earth, and those subject to saturation with water or other liquids are considered wet-location installations.Another factor to consider in the choice of insulation is temperature. Different insulations have different maximum temperature ratings. Check the NEC and applicable LOCAL CODES to be sure you are using the appropriate insulation for the location and temperature considered in the plans. Some examples of the composition of insulation, the location that applies, and their maximum temperature rating follow:Type RH is a heat-resistant compound, that will stand higher temperature than Type R. This type is commonly used in dry locations. The maximum temperature rating is 167F.Type RHW is a moisture-resistant rubber compound for use where the wire may be subject to wet conditions. This type is used in both wet and dry locations. The maximum temperature rating is 167F.Type RUH is a high grade rubber compound, consisting of 90-percent latex. This type is often used for direct burial in dry locations. The maximum temperature rating is 140F.Thermoplastic insulation has the advantage of long life, toughness, and a dielectric strength (that is, a capacity for insulating) equal to that of rubber. It requires no protective covering over the insulation. Common types of thermoplastic insulation are Types T, TW, and TA. Type T is suitable only for dry locations with a maximum temperature rating of 140F. Type TW is moisture-resistant, and again, with a temperature rating of 140F. Type TA is a thermoplastic-asbestos compound that combines the characteristics of Types T and TW. This type has a maximum temperature rating of 194F. Its use is restricted to switchboard wiring.Varnished cambric insulation has an insulating quality midway between that of rubber and paper. It is more flexible than paper; its dielectric strength is greater than that of rubber. This type is not adversely affected by ordinary oil and grease. It is manufactured in either standard type (black finish), or in the heat-resistant type with a yellow finish. Varnished insulation is restricted to dry locations in areas such as motor leads, transformer leads, and high-voltage cables. |
![]() ![]() |
|
![]() ![]() |
