The amount and type of copy work performed in an imaging facility should be the basis for the types of copy equipment on hand. When expensive equipment is not justified or available, a 35mm camera and the sun can be used for copying; however, the best results are obtained when cameras and equipment designed for copying are used.

Copying with a 35mm Camera

When making slides or only when an occasional copy job is requested, a 35mm camera should be used. Copy stands are available for use with 35mm cameras. (fig. 8-2) A set of lights may be mounted on the stand. When lights

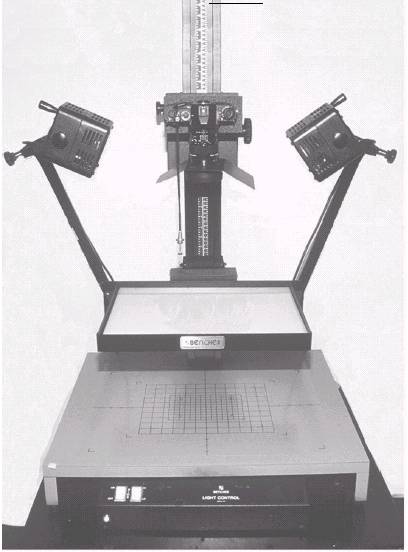

Figure 8-2. Copy Stand.

are not provided with the copy stand, regular studio lights can be used in their place.

When a copy stand is not available for use with a 35mm camera, the camera can be used on a tripod, mounted for either horizontal or vertical copying. For vertical copying, the tripod elevator post is removed and inserted into the tripod upside down. The camera is then mounted under the tripod, and the tripod is then centered over the original to be copied.
