The acid or alkali state of a solution is measured in pH values. The pH value of developers and fixers influences their activity and proper strength. pH is basically a measure of the degree of acidity or alkalinity of a solution. It provides an invaluable aid in determining the degree of accuracy with which the processing solutions have been prepared. Photographic developers usually have a pH of 8 to 12, while fixers range between pH 3.1 and 5.

The following scale indicates the location of acids and alkalis by their pH value (strength):

A pH of 7 is neutral. Working down from this point, the figures indicate weak acids with a pH of 6 on to strong acids with a pH of 1. Working up from a pH of 7, the figures indicate weak alkalis with a pH of 8 to strong alkalis with a pH of 14.

The pH values are numbered on a logarithmic scale. From 0 through 6, each number indicates a degree of acidity 1/10 as strong as the preceding number, but 10 times stronger than the next succeeding or higher number. A solution with a pH value of 4, for example, has a degree of acidity 10 times stronger than a solution with a pH value of 5, but only 1/100 the strength of a solution having a pH value of 2. When determining the degree of alkalinity of a solution, figure it in an opposite manner. From 8 through 14, each number represents a degree of alkalinity 10 times as strong as the last preceding number, but 1/10 the strength of the next higher number; for example, a solution having a pH value of 11 indicates that the solution has an alkalinity 1,000 times stronger than a solution having a pH value of 8, but it would be only 1/100 as alkaline as a solution having a pH value of 13.

Litmus paper is used to indicate whether a solution is acid, alkaline, or neutral, but it does not indicate the actual pH value. For this purpose a pH meter should be used.

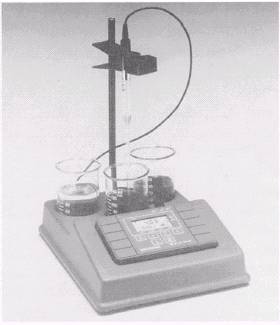

A pH meter is an amplifier meter with a scale that reads from 0 to 14 and an electrode apparatus (Eg. 9-3). A pH meter has a reference electrode and a pH measuring electrode, or these two can be combined into one combination electrode. The pH electrode actually measures the pH, while the reference electrode that contains an electrolyte solution is used only to complete the electrical circuit. The first step in measuring pH is to establish a point of reference by a standardization procedure. To standardize the pH meter, you must place the electrodes in a calibrated buffer solution.

Buffer solutions are available at exact pH values for this precise standardization. Always select a buffer with a pH value as close as possible to the pH of the sample to be tested; for example, use a buffer at a pH of 4.00 to test a fixer solution or a pH of 10.00 to test a developer solution. The instrument should be standardized at regular intervals during a long series of measurements or before each use.

Courtesy of Beckman Instruments, Inc.

Figure 9-3. pH meter.

The ability of a pH meter to determine the pH value of a solution accurately may be used for the following purposes:

To verify that chemicals have been properly mixed

To test prepared chemicals

To assure standardization of the processing solutions

To determine the exact replenishment rates for photographic chemical solutions

Tolerances in pH values must be established for individual labs because of differences in procedures, types of equipment, impurities in water, and so forth. On the average, two readings from 10 different batches of each solution, mixed at different times, must be taken and recorded to establish these standards. These batches should be mixed as they would be for regular use but under very close control to ensure that the solutions are mixed at the correct temperature, in the proper sequence, and so forth. This operation helps in determining the tolerance. This tolerance is the amount of variation of the pH that still produces high-quality results.

Courtesy of Kreonite, Inc.

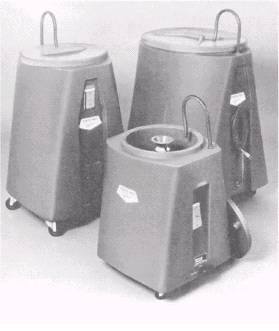

Figure 9-4. Agitation mixers.

The discussion of pH meters is intended as an introduction only. Detailed step-by-step operating instructions for pH meters are not included in this chapter. Operating instructions in the form of technical orders and manufacturer's manuals for specific pH meters will be available to you in your imaging facility.
