DECON TEAM EQUIPPED WITH AN M17 While this DED configuration is manpower LDS.- Decon teams equipped with the M17 LDS will

. and equipment intensive, it provides for the

set up the DED differently from M12A PDDA-equipped rapid decontamination of vehicles and units. The optimum setup of a DED for an M17 equipment (eight vehicles processed per hour) LDS-equipped platoon is shown in figure 6-9. (table 6-9).

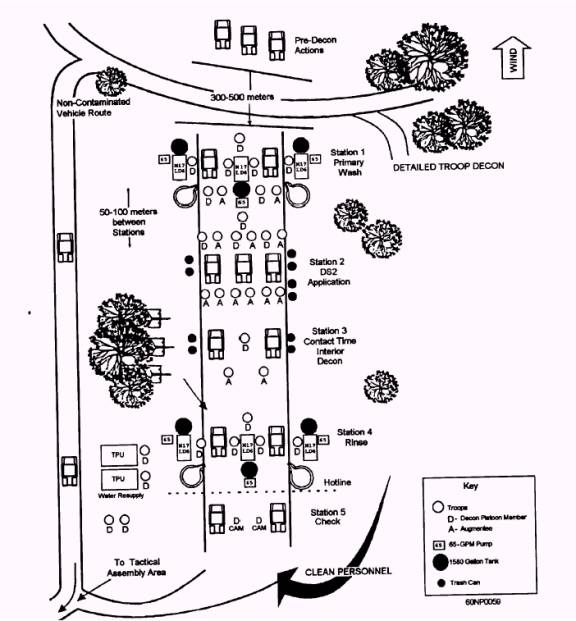

Figure 6-9.- Optimum DED layout for an M17 LDS-equipped unit. 6-31 115

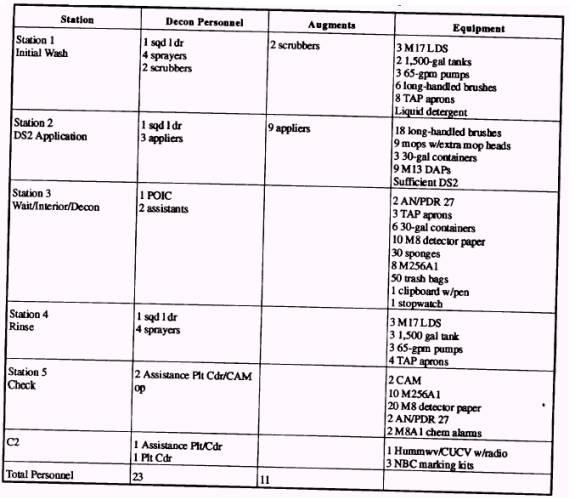

Table 6-9.-

Optimum M17 LDS-Equipped DED Setup This layout uses dual lanes at stations 1,4, and 5 to process two vehicles at once. Since the most time and labor intensive work takes place at station 3, this station is designed to process three vehicles at a time. The processing rate of this configuration will be affected by any work/ rest cycle.
