MEDIUM
PACK The
medium pack designed to carry up to 50 pounds of various existence load items,
is the one generally used by most combat troops. Figure 2-13 shows front and
back views. The pack is water repellent but not waterproof. Four waterproof
liners are issued with each pack one large one for the main compartment and
three small ones for each of the three pockets. Equipment to be carried should
first be inserted in the waterproof liners, then into the main compartment and
pockets. Instructions for making a watertight closure are printed on the
outside of each liner.
The
small pocket in the main compartment can be used to carry the AN/PRC-25 or
AN/PRC-77 radio. The main flap for covering the loaded pack can be opened by
pulling apart the two tabs. The camouflage cover or other small, flat objects
may be stored in it. Simply pressing the flap together seals it.
Equipment
hangers (webbed loops and webbing with eyelets) for use with slide keepers
and/or hooks are provided on the sides of the pack and above the pockets for
carrying equipment on the outside of the pack

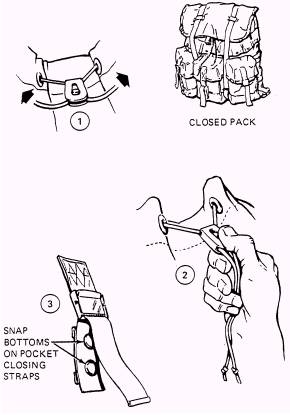

Figure
2-14.-Buckles for closing and opening pocket flaps and main compartments.
For
carrying equipment, such as a bayonet scabbard or machete sheath, the pockets
are tunneled between the pockets and the main compartment. By sliding the piece
down through the tunnel, it can be fastened to the hanger above it with slide
keepers or hooks.
The
medium pack is most commonly carried using the shoulder straps without the
frame. When required, the pack can be attached to the frame and shoulder straps
in the same way as is shown later for attaching the large pack to the frame.
|
