IMPROVISED
LITTERS A
litter can be improvised from many different things. Most flat-surfaced objects
of suitable size can be used as litters. Such objects include boards, doors,
window shutters, benches, ladders, cots, and poles tied together. If possible,
such objects should be padded Satisfactory litters can also be made by securing
poles inside such items as blankets, shelter halves, tarpaulins, jackets,
shirts, sacks, bags, and mattress covers. Poles can be improvised from strong
branches, rifles, tent supports, skis, and other items.
CAUTION
When weapons
are used as splints, be absolutely sure they are unloaded. When poles cannot be
obtained, a large item, such as a blanket, can be rolled from both sides toward
the center; then the rolls can be used to obtain a firm grip for carrying the
casualty. Several methods of improvising litters are shown and explained in
figures 10-15 through 10-17.
Figure
10-18.-Fireman's carry (step one).

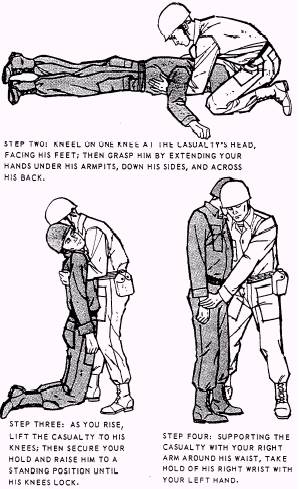

Figure 10-19.-Fireman's carry (steps two, three, and
four).

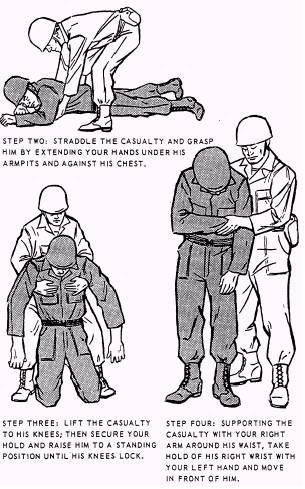

Figure
10-20.-Fireman's carry (steps two, three, and four alternate method).
|
|
