TYPES OF DUCT SYSTEMS

In this section, the advantages and disadvantages of a double-duct system are discussed. Since there are many possibilities for an adequate duct system, one such system is modified to fit the needs of two different residential configurations.

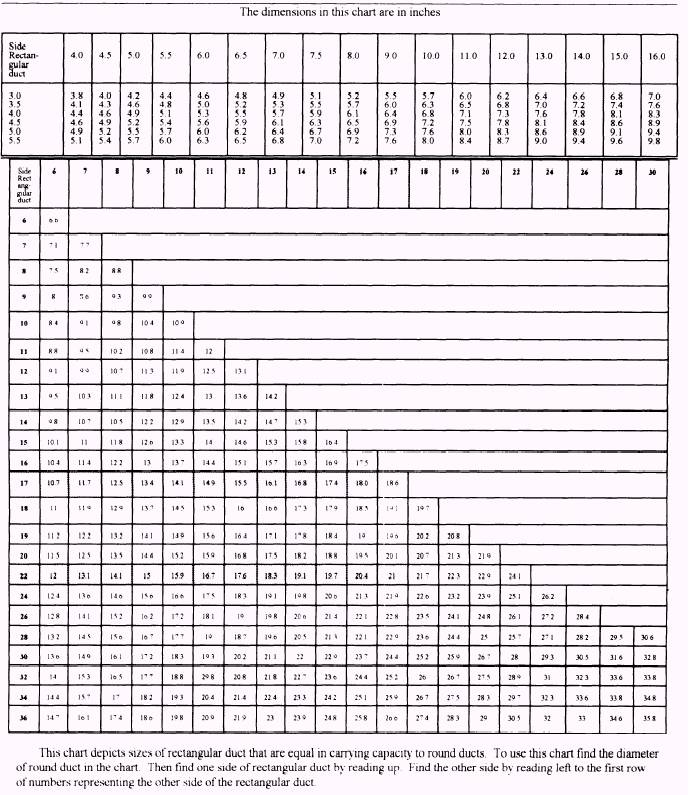

Table 13.3.-Duct Capacity Conversions

A double duct system generally consists of a blowthrough fan unit discharging filtered air through stacked or adjacent heating and cooling coils into separate plenums and ductwork with thermostatically controlled mixing dampers at various room locations.

The inherent advantage of a double duct system is that individual room conditions can be maintained from a central system, within the limitations of supply air temperatures. This is done by the blending of hot and cool air through automatically controlled mixing devices. Another important credit is flexibility. In this regard, individually controlled rooms can be easily incorporated, at modest cost, after the building is completed.

In modern buildings of multiple exposures designed for variable functions and changing occupancy, individual room control is essential and a double duct system should be seriously considered.

Double duct systems for low pressure are usually tiered hot and cold ducts within the furred space. They are generally located above corridors. The manner of distributing proper temperature air to the room is through right angle, interlinked mixing dampers operated by motors controlled through thermostats. In general, this type of system uses the same corridor plenum area around the ducts for conveyance of return or exhaust air. The residual volume of space left for this purpose is too often neglected. Inevitably, this results in insufficient relief for the rooms.

The main disadvantage of a double duct system is lack of stability of air quantities supplied to areas (rooms) because of varying duct static pressures.

All duct elbows, including supply, exhaust, and return, should be made with a center line radius of 1.5 times the duct width, parallel to the radius wherever possible. In no case should the center line radius be less than the width of the duct parallel to the radius. Where space does not permit the above radius, or where square elbows are indicated on plans, turning vanes of an approved type should be used.

Additionally, there are numerous adaptations and modifications of duct systems. Figure 13-1 shows a residential duct system with the furnace and central air unit located in the basement.

Figure 13-1.-Residential duct system. 13-5

In figure 13-2, the same basic system is shown in a single-story house. The duct system is located in the overhead and the return air enters through the bottom of the central air-handling unit. When the duct system is located in a crawl space, basement, or attic, it should be insulated to maintain the existing temperature.
