TYPES OF CORROSION

Man has had corrosion problems to contend with ever since he started making articles out of metal. For thousands of years, the only fact known about corrosion was that it would affect some metals more than others. For example, iron, one of the most abundant and useful metals, corrodes very much; whereas metals such as gold, platinum, and silver corrode very little. Later, men began to study corrosion to find out what caused it. As might be expected, many theories were proposed to explain corrosion and its causes. Among the many theories, the electrochemical theory is most generally accepted as an explanation of corrosion.

The electrochemical theory of corrosion is best explained by the action that takes place in a galvanic cell. A galvanic cell can be produced by placing two dissimilar metals in a suitable electrolyte, as shown in figure 7-12. The resulting electrochemical reaction develops a potential difference between these metals. This causes one metal to be negative or anodic and the other metal to be positive or cathodic. In a dry cell battery, the zinc case is the anode and the carbon rod the cathode. Now, when an external electrical circuit is completed, current flows from the zinc case into the electrolyte, taking with it particles of zinc. This is an example of galvanic corrosion of the zinc case. It is this electrochemical action that illustrates the electrochemical theory.

Corrosion may be divided into several types, such as uniform corrosion, localized corrosion, and compositional corrosion. Each type will be explained in the following paragraphs.

Uniform Corrosion

Uniform corrosion is caused by direct chemical attack. An example of this type of corrosion is zinc exposed to hydrochloric acid. If you examine the surface of zinc in a solution of hydrochloric acid, you will find that the entire surface is corroding. Furthermore, if the zinc is left in the acid long enough, it will be dissolved by the acid.

Localized Corrosion

Localized corrosion is caused by the electrolytic action of a galvanic cell. A local galvanic action is set up when there is a difference of potential between the areas on a metallic surface that is an electrolyte. Localized corrosion may be in the form of pits, pockets, or cavities due to the deterioration or destruction of metal.

Localized corrosion may develop under a number of various conditions when different types

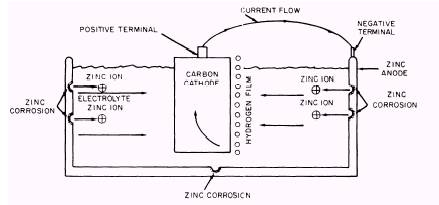

Figure 7-12.-Galvanic cell showing internal galvanic action. 7-20

of equipment are buried in the ground. Some examples of localized corrosion are discussed in the following paragraphs.

. Corrosion due to mill scale. The mill scale embedded in the walls of iron pipe during its manufacture is one cause of pipe corrosion. It actually becomes the cathodic area, the iron pipe the anodic area, and the moist soil the electrolyte, as shown in figure 7-13. Current leaves the iron pipe wall and passes through the electrolytic soil to the mill scale. This electrochemical action causes severe pitting of the pipe metal at the anodic areas. Continued action of this type will eventually weaken the pipe to the extent of failure.

l Corrosion due to cinders. Another type of corrosion occurs when iron pipe is laid in a cinderfill in direct contact with the cinders. The cinders and the iron pipe make up the dissimilar metals. The pipe forms the anodic area, the cinders form the cathodic area, and the highly ionized soil serves as the electrolyte. The current leaves the pipe through the soil to the cinders and returns to the pipe. Severe corrosion occurs at the points where the current leaves the pipe.

. Corrosion due to dissimilarity of pipe surface. This type of galvanic corrosion occurs when there are bright or polished surfaces on some areas of the pipe walls in contact with suitable electrolytic soil. These bright surfaces become anodic to the remaining pipe surfaces. In highly ionized soil, the polished surfaces corrode at an accelerated rate, thus weakening the pipe at that point.

. Corrosion due to different soil conditions. This is a general corrosion problem, especially prevalent in highly alkaline areas. Corrosion currents leave the pipe wall and pass into compact soils and enter the pipe wall from light sandy soils. The intensity of the corrosion currents and the resulting rate of corrosion at the anodic areas of the pipe are directly proportional to the conductivity of the soil.

l Corrosion due to stray currents. Direct current circuits that pass in and out of an electrolyte usually cause stray currents, many of which are a direct cause of corrosion. Corrosion does not occur at the point where the current enters the structure, because it is catholically protected. However, at the section where the current leaves the structure, severe stray current corrosion occurs. Over a period of a year, this type of corrosion has been known to displace as much as 20 pounds of pipe wall for every ampere of current.

. Corrosion due to bacteria.

Biological corrosion is another distinct type of corrosion caused by electrolytic or galvanic cell action. It is the deterioration of metals by corrosion processes that occurs as either a direct or an indirect result of the metabolic activity of certain minute bacteria, particularly in water or soil envirnments. These organisms that cause bacterial corrosion are bacteria, slime, and fungi.

Figure 7-13.-Pipe with corroding (anode) and noncorroding (cathode) areas. 7-21

Microbiological corrosive action in the soil is due to physical and chemical changes in the soil caused by the presence of these organisms. Some bacteria are responsible for the production of active galvanic cells. These bacteria are mostly found in highly waterlogged, sulfate-bearing, blue clay soils. The bacteria concentration, as well as the corrosion rate, varies considerably with the different seasons of the year. Cast-iron and steel pipes are corroded mostly by sulfide production.
