Sea Surface Temperature Analysis |
||
| |||||||||||||||
|
|
Sea Surface Temperature Analysis The sea surface temperature analysis shown in figure 4-2-8 is typical of the low-resolution

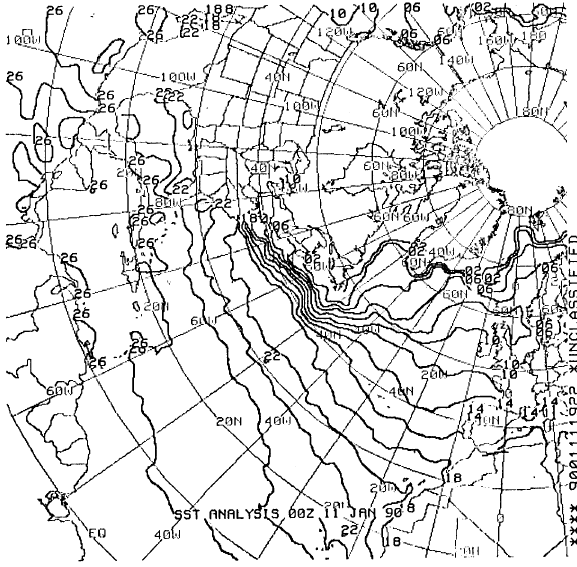

Figure 4-2-8.-Sea surface temperature analysis. product transmitted via the facsimile broad- cast. Solid lines are used to depict sea surface temperature isotherms every 4C. A similar, medium-resolution chart is also transmitted that uses a 2C isotherm interval. Very small scale, high-resolution charts are available on the NEDS that which use a 1C interval or less. |
|
