Axles are classified as either LIVE or DEAD. The live axle is used to transmit power. The dead axle only serves as a support for part of the vehicle while providing a mounting for the wheel assembly. Many commercial trucks and truck-tractors have dead axles on the front, whereas practically all passenger vehicles use independent front-wheel suspensions and have no front axles.

The shaft in a live axle assembly may or may not actually support part of the weight of a vehicle, but it does drive the wheels connected to it. A live axle is involved with steering when it is a front drive axle. Some live rear axles are also designed to steer. The rear axle of conventional passenger vehicles is a live axle, while in a four-wheel drive vehicle both front and rear axles are live. In some six-wheel vehicles, all three axles are live axles.

AXLE HOUSING
The axle housing may be of the one-piece or split (banjo) type construction. The former, known as the banjo type because of its appearance, is far more common (fig. 5-22). Notice that openings, both front and rear, are provided in the center housing. The front opening is closed by the differential carrier, while the rear is closed by a spherical cover plate.

Since the assembly must carry the weight of the vehicle, the axle housing in heavy trucks and tractors is a heavy cast unit. In light-duty trucks it may be a combination of cast and steel tube; in general, the center or differential and final drive case is a cast and machined unit, whereas the axle housings themselves may be welded or extruded steel tubing.

Items, such as brake backing plates, mounting flanges, spring mounting plates, and accessory units, may be riveted, welded, or cast into the axle housing. Inspection covers are often provided through which

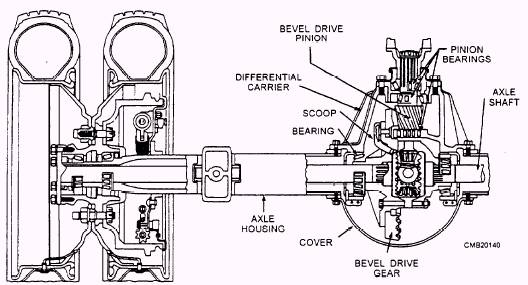

Figure 5-22.- Axle assembly.

the internal parts can be inspected, removed, and installed. Lubricant filler plugs are usually incorporated in the housing inspection cover.

To prevent pressure buildup when the axle becomes warm, a breather vent or valve is provided atop the housing. Without this valve, the resulting pressure could force the axle lubricant past the rear wheel oil seals and damage the brake linings. The valve is constructed so air may pass in or out of the axle housing; however, dirt and moisture are kept out.
