The taper attachment, illustrated in figure 9-15, is used for turning and boring tapers. It is bolted to the back of the carriage. In operation, it is connected to the cross slide so that it moves the cross slide traversely as the carriage moves longitudinally, thereby causing the cutting tool to move at an angle to the axis of the work to produce a taper.

The desired angle of taper is set on the guide bar of the attachment. The guide bar support is clamped to the lathe bed Since the cross slide is connected to a shoe that slides on this guide bar, the tool follows along a line parallel to the guide bar and at an angle to the work axis corresponding to the desired taper.

The operation of the taper attachment will be further explained under the subject of taper work

Thread Dial Indicator

The thread dial indicator, shown in figure 9-16, eliminates the need to reverse the lathe to return the carriage to the starting point each time a successive threading cut is taken. The dial, which is geared to the lead screw, indicates when to clamp the half-nuts on the lead screw for the next cut.

The threading dial consists of a worm wheel which is attached to the lower end of a shaft and meshed with

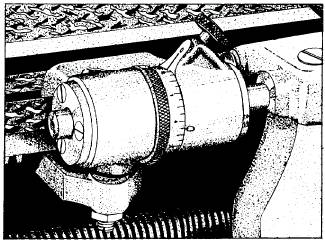

Figure 9-17.Micrometer carriage stop.

the lead screw. On the upper end of the shaft is the dial. As the lead screw revolves, the dial is turned and the graduations on the dial indicate points at which the half-nuts may be engaged.

Carriage Stop

The carriage stop can be attached to the bed at any point where the carriage should stop. It is used primarily for turning, facing, or boring duplicate parts, as it eliminates taking repeated measurements of the same dimension. In operation, the stop is set at the point where the feed should stop. To use the stop, just before the carriage reaches the stopping point, shut off the automatic feed and manually run the carriage up against the stop. Carriage stops are provided with or without micrometer adjustment. Figure 9-17 shows a micrometer carriage stop. Clamp it on the ways in the approximate position required, and then adjust it to the exact setting by using the micrometer adjustment. (Do not confuse this stop with the automatic carriage stop that automatically stops the carriage by disengaging the feed or stopping the lathe.)

MAINTENANCE

Every lathe must be maintained strictly according to requirements of the Maintenance and Material Management (3-M) Systems. The first requirement of maintenance to your lathe is proper lubrication. Make it a point to oil your lathe daily where oil holes are provided. Oil the ways daily-not only for lubrication but to protect their scraped surfaces. Oil the lead screw often while it is in use; this is necessary to preserve its accuracy, for a worn lead screw lacks precision in thread cutting. Make sure the headstock is filled to the proper oil level; drain the oil out and replace it when it becomes dirty or gummy. If your lathe is equipped with an automatic oiling system for some parts, make sure all those parts are getting oil. Make it a habit to CHECK frequently to see that all moving parts are being lubricated.

Before engaging the longitudinal feed, be certain that the carriage clamp screw is loose and that the carriage can be moved by hand. Avoid running the carriage against the headstock or tailstock while it is under the power feed; running the carriage against the headstock or tailstock puts an unnecessary strain on the lathe and may jam the gears.

Do not neglect the motor just because it may be out of sight; check its lubrication. If it does not run properly, notify the Electricians Mate who is responsible for caring for it. He or she will cooperate with you to keep it in good condition. On lathes with a belt driven from the motor, avoid getting oil or grease on the belt when you oil the lathe or motor.

Keep your lathe clean. A clean and orderly machine is an indication of a good mechanic. Dirt and chips on the ways, on the lead screw, and on the crossfeed screws will cause serious wear and impair the accuracy of the machine.

NEVER put wrenches, files, or other tools on the ways. If you must keep tools on the bed, use a board to protect the finished surfaces of the ways.

NEVER use the bed or carriage as an anvil. Remember, the lathe is a precision machine, and nothing must be allowed to destroy its accuracy.

BASIC SETUP

A knowledge of the basic setup is required if you are to become proficient in performing machine work with a lathe. Some of these setups are considered in the following sections.
