USING WIRE ROPE AND FIBER LINE SLINGS

Three types of fiber line and wire rope slings commonly used for lifting a load are the ENDLESS, the SINGLE LEG, and the BRIDLE slings.

An ENDLESS SLING, usually referred to by the term sling, can be made by splicing the ends of a piece of fiber line or wire rope to form an endless loop. An endless sling is easy to handle and can be used as a CHOKER HITCH (fig. 6-14).

Figure 6-14.-Endless sling rigged as a choker hitch.

A SINGLE-LEG SLING, commonly referred to as a strap, can be made by forming a spliced eye in each end of a piece of fiber line or wire rope. Sometimes the ends of a piece of wire rope are spliced into eyes around thimbles, and one eye is fastened to a hook with a shackle. With this arrangement, the shackle and hook are removable.

The single-leg sling maybe used as a choker hitch (fig. 6-15, view A) in hoisting by passing one eye through the other eye and over the hoisting hook. The single-leg sling is also useful as a double-anchor hitch (fig. 6-15, view B). The double-anchor hitch works

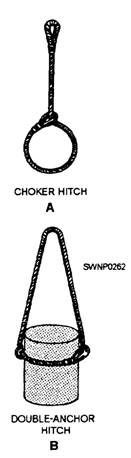

Figure 6-15.-Methods of using single-leg slings.

well for hoisting drums or other cylindrical objects where a sling must tighten itself under strain and lift by friction against the sides of the object.

Single-leg slings can be used to make various types of BRIDLES. Three common uses of bridles are shown in figure 6-16. Either two or more single slings may be used for a given combination.

The bridle hitch provides excellent load stability when the load is distributed equally among each sling leg, the load hook is directly over the center of gravity of the load, and the load is raised level. The use of bridle slings requires that the sling angles be carefully determined to ensure that the individual legs are not overloaded.

NOTE: It is wrong to conclude that a three- or four-leg bridle will safely lift a load equal to the safe load on one leg multiplied by the number of legs. This is because there is no way of knowing that each leg is carrying its share of the load.

With a four-legged bride sling lifting a rigid load, it is possible for two of the legs to support practically the full load while the other two legs only balance it. COMSECOND/COMTHIRDNCB strongly recommend that the rated capacity for two-leg bridle slings listed in the COMSECOND/COMTHIRDNCBINST 11200.11 be used also as the safe working load for three- or four-leg bridle hitches.

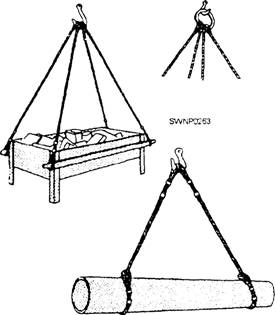

Figure 6-16.-Multi-legged bridle stings.
