SEPTIC TANKS

Septic tanks may be used to serve small or scattered installations where the effluent can be disposed of by dilution, leaching wells or trenches, subsurface tile, or artificial subsurface filter systems (fig. 10-2).

The septic tank capacity should equal a full day's flow plus an additional allowance of from 15 to 25 percent for sludge capacity. The minimum acceptable size of septic tank is 1,000 gallons. Table 10-14 outlines the minimum tank capacities required by the National Standard Plumbing Code.

Septic tanks are constructed of reinforced concrete. The length of the tank should be not less than two nor more than three times the width. The liquid depth should not be less than 4 feet for the smaller tanks and 6 feet for the larger ones. Manholes should be provided over the inlet and outlet pipes and over the low points in the

Figure 10-2.-Septic tank

Table 10-14.-Capacity of Septic Tanks

bottom of hopper-bottom tanks. The roof of the tank may be covered with earth, but access openings should extend at least to the ground surface. Although ells or tees may be used at inlet and outlet connections, straight connections are better for rodding. Instead of ells, wooden baffles, located approximately 18 inches from the ends of the tank and extending 18 inches below and 12 inches above the flow line, are provided. Elevations should permit free flow into and out of the tank. The bottom of the inlet sewer should be at least 3 inches above the water level in the tank. The inlet and outlet connections should be sufficiently buried or otherwise protected to prevent damage by traffic or frost.

When a tank will discharge into a leaching field greater than 500 feet in length, a dosing tank and siphon should be incorporated into the system (fig. 10-3). The rush of sewage that occurs when the siphon discharges results in better distribution throughout the leaching field. While the dosing tank is refilling, the resultant resting period is favorable to maintaining aerobic conditions in the receiving soil. The dosing tank should have a capacity about 60 to 75 percent of the interior capacity of the leaching pipe to be dosed at one time and should automatically dose once in 3 to 4 hours. Double the amount of dosing siphons for each additional 500 feet of leaching tile or pipe.

Although properly designed septic tanks require little operating attention, they must be inspected periodically. The frequency is determined by the size of the tank and the population load. The minimum frequency should be once every 2 months at periods of high flow. The inspection should assure that the inlet and outlet are free from clogging, that the depth of scum and sludge accumulation is not excessive, and that the effluent passing to subsurface disposal is relatively free from suspended solids. A high concentration of suspended solids in the effluent quickly clogs subsurface disposal facilities. Sludge and scum accumulation should not exceed one-fourth the tank capacity. It should not be assumed that septic tanks liquefy all solids, that they never need cleaning, and that the effluent is pure and free from germs. Perhaps 40 to 60 percent of the suspended solids are retained and the rest are discharged in the effluent.

Separating sludge and scum from the liquid in septic tanks is difficult. In small tanks these wastes are customarily mixed, and the entire contents are removed when the tanks are cleaned. The

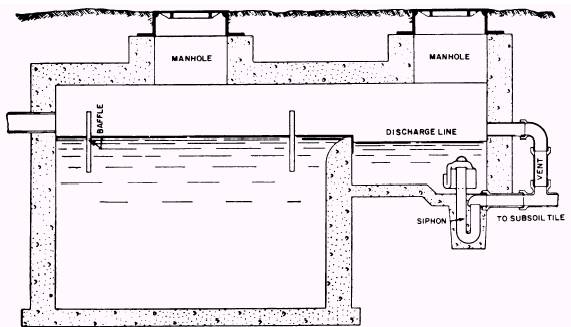

Figure 10-3.-Septic tank with dosing siphon.

material removed contains fresh or partially digested sewage solids. It must be disposed of without endangering public health. Disposal through manholes in the nearest sewer system, as approved by local authorities, or burial in shallow furrows on open land is recommended. A diaphragm type of sludge pump is best suited for removing the content of the tank. The contents should be transported in a watertight, closed container.

When installing a septic tank system for sewage treatment, you must take into consideration the location with respect to wells or other sources of water supply, topography, water table, soil characteristics, area available, and maximum building occupancy. Building occupancy is a key factor in determining tank size. Table 10-15 shows common sewage uses based on type of facility and gallons per person per day of usage.

The physical location of a septic tank in relation to wells must be no closer than 100 feet from a shallow well and no closer than 50 feet from a deep well. In general, a shallow well is less than 100 feet in depth and a deep well is more than 100 feet in depth. Figure 10-4 shows a typical septic tank system layout with minimum distances noted. Keep in mind that septic tanks, cesspools, and leaching fields must be located downhill from any water source.
