Air Discharge Systems

Some discharge systems require special consideration for the placement of auxiliary equipment. All positive displacement compressors require a relief valve on their discharge side to protect the equipment and piping upstream of the first shutoff valve. Relief valves should be sized for at least 125 percent of the maximum unit flow capacity and should carry the American Society of Mechanical Engineers (ASME) stamp, listing the capacity and pressure setting of the valve.

Separators

Water and oil separators are required to separate and free excess water from the discharge air or gas. This is necessary to prevent corrosion, deposit buildup, and water or oil buildup in the piping or service. For example, water will cause rust in piping, wash away lubricants, and plug nozzles. Oil will contaminate many industrial processes and may present an explosion hazard. The need for water or oil separators will be determined by the end use of the compressed air.

A centrifugal separator is illustrated in figure 11-14. Air is directed into this unit in a manner that creates a swirling motion. Centrifugal force throws the moisture particles against the wall where they drain to the bottom.

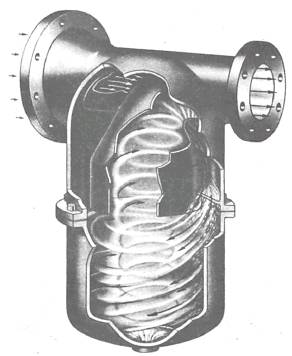

Figure 11-14.-Centrifugal-type moisture separator.

Figure 11-15.-Baffle-type moisture separator.

Figure 11-16.-Flow process of refrigeration-type air dryer.

A baffle-type separator is illustrated in figure 11-15. In this unit the air is subjected to a series of sudden changes in direction that result in the heavier moisture particles striking the baffles and walls, then draining to the bottom.

Dryers

Some compressed air supplies require dryers that ensure removal of all moisture that might otherwise condense in air lines, air-powered tools, or pneumatic instruments. Small amounts of moisture can cause damage to equipment from corrosion, freezing, and water hammer and can result in malfunctions of instruments and controls. The cost of dryers is often justified by the reduction in maintenance costs, production time lost in blowing down piping, and compressed air lost during blowdown.

There are three basic designs of dryers: two absorption types and a condensation type. One type of absorption unit consists of two towers, each containing an absorbent material. Reactivation is accomplished by means of electric or steam heaters embedded in the absorbent or by passing driedprocess air through it.

Another type of absorption unit consists of a single tank or tower containing a desiccant (drying agent) that dissolves as it absorbs moisture from the air and drains from the unit with the condensate. The drying agent must be replenished periodically.

The third type removes moisture from the air by condensation through the use of a mechanical refrigeration unit, or where available, cold water. Inlet air passes over cold coils where moisture is condensed out of the air and is drained from the unit by a trap. This process is illustrated in figure 11-16.

Receivers

Air receiver tanks in compressed air plants act as surge tanks to smooth the flow of air from the action of the compressor to discharge; they collect excessive moisture that may condense from the cooled air and provide a volume of air necessary to operate the pressure control system. A typical air receiver is shown in figure 11-17. Related components include a relief valve, pressure gauge, drain valve, service valve, and inspection opening.

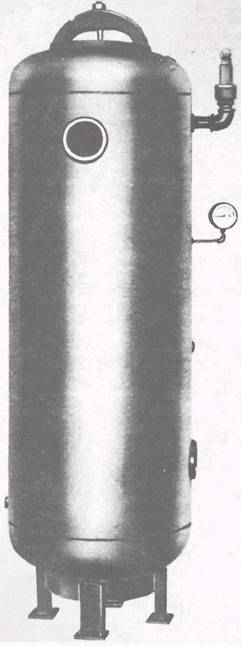

Figure 11-17.-Air receiver.

Lubrication

Compressors must receive adequate lubrication using clean oil of characteristics recommended by the compressor manufacturer. The manufacturer will usually specify oil requirements by characteristics, such as viscosity at one or more temperatures, pour point, flash point, and in some cases, by specific brands.

Typical compressor cylinder oils will have the following characteristics:

Where cylinder lubrication is separate from frame and bearing lubricants, a modified set of characteristics may be specified. Synthetic oils must conform to the manufacturer's requirements and must be used with care as many synthetic oils may cause swelling and softening of neoprenes and certain rubbers or may not be compatible or separable from water.

Some special considerations for lubricants include the provision of a lubrication oil heater to ensure adequate viscosity during cold weather start-up. High compressor discharge temperatures require lubrication flows and characteristics that still lubricate when subjected to 300F or higher discharge air temperature conditions. Finally, oil injection or oil-flooded compressors need adequate oil flow and characteristics to maintain lubrication of temperatures within the cylinders or screws. A typical lubrication arrangement is shown in figure 11-18.
