Prime Movers

Prime movers for compressors can be electrical, gasoline, or diesel driven. This section will address electrical prime movers only. Gasoline and diesel-driven prime movers are normally the responsibility of the Construction Mechanic. Several types of electric motors can be used to drive compressors: induction, synchronous-wound motor, and direct current (dc) motors.

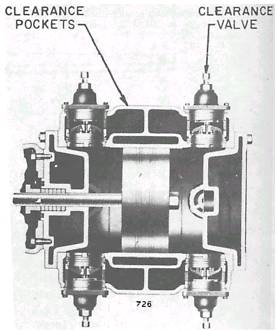

Figure 11-23.-Air cylinder showing clearance pockets and clearance valves

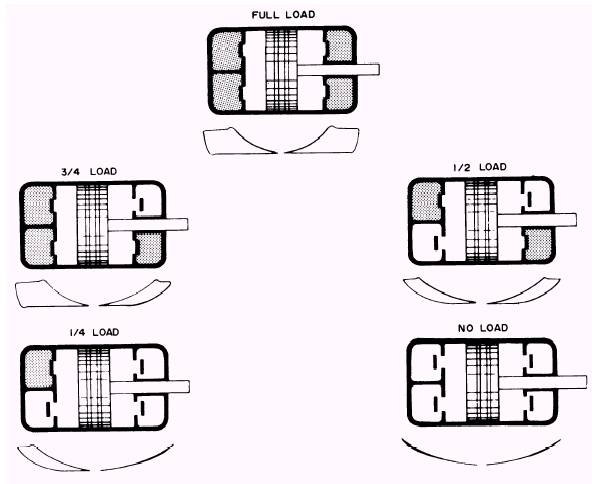

Figure 11-24.-Five-step clearance control.

Although electric motor drive is available for compressors of almost any capacity, certain types of machines are best driven by an induction motor; others may be driven by a synchronous motor. Generally, cost will rule out synchronous motors except in unusual cases. Direct current motors are seldom used.

Motor-driven compressors may be further identified by the type of connection that is used between the motor and compressor. Any one of the following types of drives may be used: belt, direct-connected, or speed reduction gears.

Induction motors can be used to power singleacting reciprocating compressors ranging from fractional horsepower up to approximately 300 horsepower at a speed of 1,800 rpm. Speeds of 1,200 and 900 rpm and lower are sometimes used in higher horsepower applications. When sizing a motor, you must allow for belt or drive losses of power.

Caution must be exercised when large belted motors are used; manufacturer's recommendations should be applied. Most motors that are belted to compressors are rated as normal starting torque, low-starting current motors. Belt selection should be based on a continuous operation rating of at least 125 percent of motor size with 150 percent preferred. Other compressors that start under load may require motors rated as high-start torque, low-starting current. Consideration should be given to compressor inertia and load to avoid lengthy acceleration time. Whenever possible, it is best

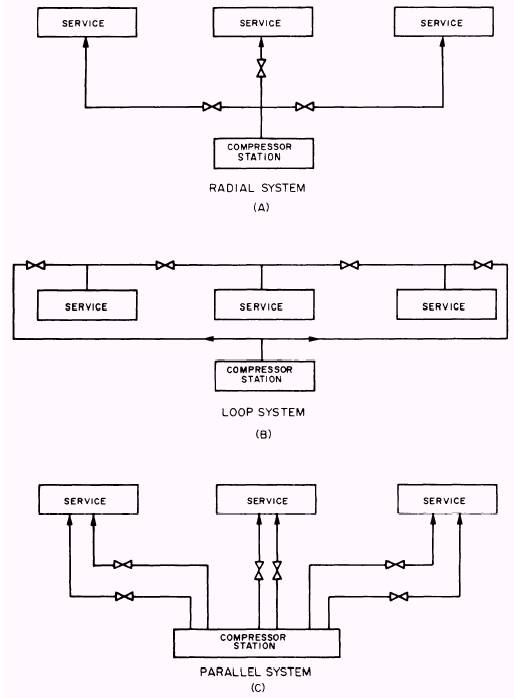

Figure 11-25.-Types of air distribution systems.

to arrange the compressor to be unloaded during start-up.

A reciprocating compressor maybe driven by an induction motor with a speed reduction gear placed between the motor and compressor. This permits the use of a higher speed with a less costly motor. Gear-driven compressors should have flywheel or inertia effect carefully checked. Couplings should have enough elasticity and dampening to allow for torque and current pulsations. Without this consideration, changes in torque caused by load variations or loading and unloading of a compressor could result in drive and motor damage.
