Although thousands of rivets are used in aircraft construction, many parts require frequent dismantling or replacement. For these parts it is more practical to use some form of threaded fastener. Furthermore, some joints require greater strength and rigidity than can be provided by riveting. Manufacturers solve this

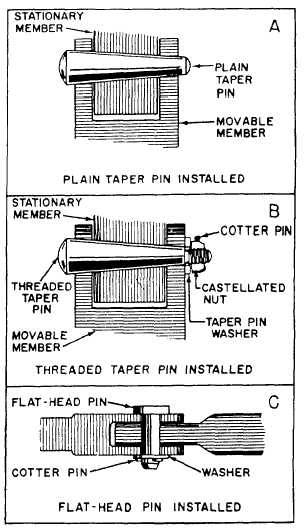

Figure 2-17.Types of aircraft pins.

Figure 2-18.Heli-coil insert.

problem by using various types of screws, bolts, and nuts.

Bolts and screws are similar in that both have a head at one end and a screw thread at the other, but there are several differences between them. The threaded end of a bolt is always relatively blunt, while that of a screw may be either blunt or pointed. The threaded end of a bolt must be screwed into a nut, but the threaded end of the screw may fit into a nut or other female arrangement, or directly into the material being secured. A bolt has a fairly short threaded section and a comparatively long grip length (the unthreaded part); a screw may have a longer threaded section and no clearly defined grip length. A bolt assembly is generally tightened by turning its nuts. Its head may or may not be designed to be turned. A screw is always designed to be turned by its head. Another minor but frequent difference between a screw and a bolt is that a screw is usually made of lower strength materials.

Threads on aircraft bolts and screws are of the American National Standard type. This standard contains two series of threads: national coarse (NC) and national fine (NF) series. Most aircraft threads are of the NF series.

Threads are also produced in right-hand and left-hand types. A right-hand thread advances into engagement when turned clockwise. A left-hand thread advances into engagement when turned counterclockwise.

Threads are sized by both the diameter and the number of threads per inch. The diameter is designated by screw gauge number for sizes up to 1/4 inch, and by nominal size for those 1/4 inch and larger. Screw gauge numbers range from 0 to 12, except that numbers 7, 9, and 11 are omitted. Threads are designated by the diameter, number of threads per inch, thread series, and class in parts catalogs, on blueprints, and on repair diagrams.

For example, No. 8-32NF-3 indicates a No. 8 size thread, 32 threads per inch, national fine series, and a class 3 thread. Also, 1/4-20NC-3 indicates a 1/4-inch thread, 20 threads per inch, national coarse series, and a class 3 thread. A left-hand thread is indicated by the letters LH following the class of thread.

Many types of bolts are used on aircraft. However, before discussing some of these types, it might be helpful to list and explain some commonly used bolt terms. You should know the names of bolt parts and be aware of the bolt dimensions that must be considered in selecting a bolt. Figure 2-19 shows both types of information.

Figure 2-19.Bolt terms and dimensions.

The three principal parts of a bolt are the head, thread, and grip. The head is the larger diameter of the bolt and may be one of many shapes or designs. The head keeps the bolt in place in one direction, and the nut used on the threads keeps it in place in the other direction.

To choose the correct replacement, several bolt dimensions must be considered. One is the length of the bolt. Note in figure 2-19 that the bolt length is the distance from the tip of the threaded end to the head of the bolt. Correct length selection is indicated when the chosen bolt extends through the nut at least two full threads. In the case of flat-end bolts or chamfered (rounded) end bolts, at least the full chamfer plus one full thread should extend through the nut. See figure 2-19. If the bolt is too short, it may not extend out of the bolt hole far enough for the nut to be securely fastened. If it is too long, it may extend so far that it interferes with the movement of nearby parts.

Unnecessarily long bolts can affect weight and balance and reduce the aircraft payload capacity. In addition, if a bolt is too long or too short, its grip is usually the wrong length. As shown in figure 2-20, grip length should be approximately the same as the thickness of the material to be fastened. If the grip is too short, the threads of the bolt will extend into the bolt hole and may act like a reamer when the material is vibrating. To prevent this, make certain that no more than two threads extend into the bolt hole. Also make certain that any threads that enter the bolt hole extend only into the thicker member that is being fastened. If the grip is too long, the nut will run out of threads before it can be tightened. In this event, a bolt with a shorter grip should be used, or if the bolt grip extends only a short distance through the hole, a washer maybe used. A second bolt dimension that must be considered is diameter. Figure 2-19 shows that the diameter of the bolt is the thickness of its shaft. If this thickness is 1/4 of an inch or more, the bolt diameter is usually given in fractions of an inch; for example, 1/4, 5/16, 7/16, and 1/2. However, if the bolt is less than 1/4 of an inch thick, the diameter is usually expressed as a whole number. For instance, a bolt that is 0.190 inch in diameter is called a No. 10 bolt, while a bolt that is 0.164 inch in diameter is called a No. 8.

The results of using a bolt of the wrong diameter should be obvious. If the bolt is too big, it cannot enter the bolt hole. If the diameter is too small, the bolt has too much play in the bolt hole, and the chances are that it is not as strong as the correct bolt. The third and fourth bolt dimensions that should be considered when choosing a bolt replacement are head thickness and width. If the head is too thin or too narrow, it may not be strong enough to bear the load imposed on it. If the head is too thick or too wide, it may extend so far that it interferes with the movement of adjacent parts.
