AN/ASM-496 DATA LINK CONTROLLER TEST SET

The AN/ASM-496 data link controller test set (fig. 16-10) is a small, portable, flight-line test device used to perform preflight and periodic performance evaluations of the guided weapons controller. The controller initiates certain data link commands and proportional signals for the AN/AWW-7B guided weapons monitor control set. The test set is used with the AN/ASM-184B(V)-1 aircraft weapon control test set to completely evaluate the aircraft interface for the AN/AWW-7B guided weapons monitor control set, Operation, output frequencies, and certain voltage levels are evaluated by the test set. The test set results are displayed on a quality meter mounted on the front panel. A total of 11 test results are resolved into a quality meter readout.

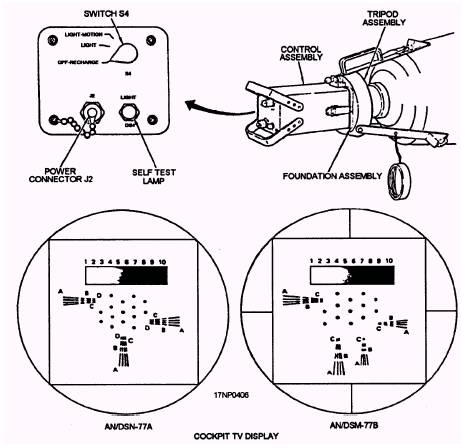

Figure 16-11.-AN/DSM-77 series test set.

AN/DSM-77 TEST SET

The AN/DSM-77 test set (fig. 16-11) is used to evaluate the operational readiness of the Walleye weapon guidance section and aircraft cockpit television display. You use the test set to check the television camera and guidance section in the weapon, the lock-on control in the aircraft, and the video display.

AN/ASM-464 GUIDED MISSILE LAUNCHER TEST SET

The AN/ASM-464 guided missile launcher test set (fig. 16-12) is a portable flight line test device. It is used to perform the operational checks of AIM-9 missile launching, visual target acquisition system (VTAS), and Sidewinder expanded acquisition mode (SEAM)

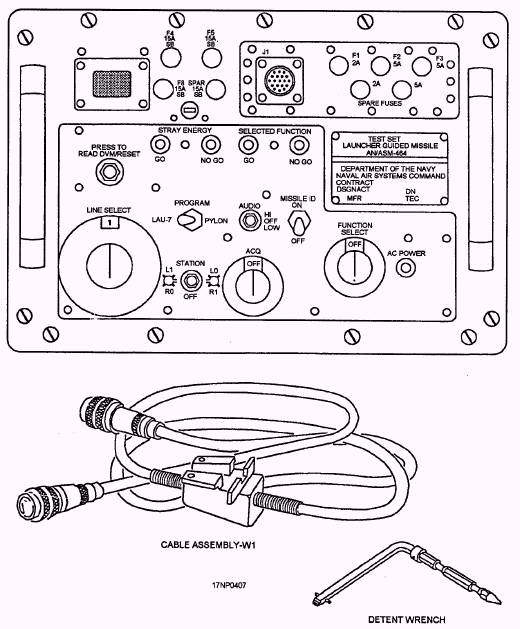

Figure 16-12.-AN/ASM-464 guided missle launcher test set.

circuits associated with the guided missile launcher LAU-7 (series). The AN/ASM-464 test set is used with the F/A-18 and F-14 aircraft and the H-1 and H-60 helicopters.

TS-3279/ASM GUIDED MISSILE AVIONICS TEST SET

The TS-3279/ASM guided missile avionics test set (fig. 16-13) is used to test the Visual Target Acquisition System/Sidewinder Expanded Acquisition Mode (VTAS/SEAM) aircraft system applicable to AIM-9 missiles.

TS-3479/AWM-23 MISSILE AUXILIARIES TEST SET

The TS-3479/AWM-23 missile auxiliaries test set

(MATS) (fig. 16-14) is used to verify the operational status and functions of the AIM-54 Phoenix missile _{control system.} The test set gives a GO/NO GO indication for circuit continuity and signal presence. The TS-3479/AWM-23 is used with the F-14 aircraft.
