TS-4142/AWM-23 MISSILE INTERFACE TEST SET

The TS-4142/AWM-23 missile interface test set (MITS) (fig. 16-15) is used to perform the AIM-54

Figure 16-13.-AIM-9 SEAM system check. 16-10

Figure 16-14.-TS-3479/AWM-23 missile auxiliaries test set.

missile station (LAU-93) checks. The TS-4142/ AWM-23 test set is used with the F-14 aircraft.

SPARROW MISSILE STATION TEST SET

The Sparrow missile station test set (SMTS) (fig. 16-16) is used to verify the operational status and

Figure 16-15.-TS-4142/AWM-23 missile interface test set.

functions of the AIM-7 Sparrow missile control system. When connected to the aircraft, the MSTS simulates the missile and provides visual indications of ^{received inputs.} The test set is used with the F-14 aircraft.

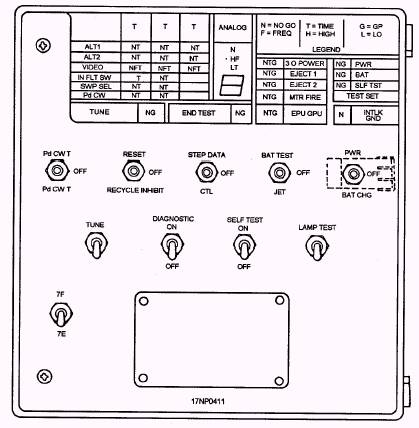

Figure 16-16.-Sparrow missile test set. 16-11

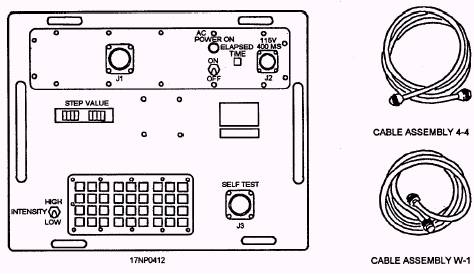

Figure 16-17.-AN/AWM-92 aircraft weapons control test set.
