AN/AWM-92 AIRCRAFT WEAPONS CONTROL TEST SET

The AN/AWM-92 test set (fig. 16-17) is used to perform operational checks of the HARM, Maverick, Walleye, and AWW-9 missile launch and control systems. This test set is used with the F/A-18 and A-6 aircraft.

B203 TORPEDO HEAT AND CONTROL SYSTEM TEST SET/B473 TEST SET OVERLAY

The B203 torpedo heat and control system test set (fig. 16-18) is used to perform circuit continuity tests on Mk 46 torpedo preset circuits. The B473 test set (fig. 16-19) consists of an overlay and an adapter cable. It is used with the B203 torpedo heat and control test set to

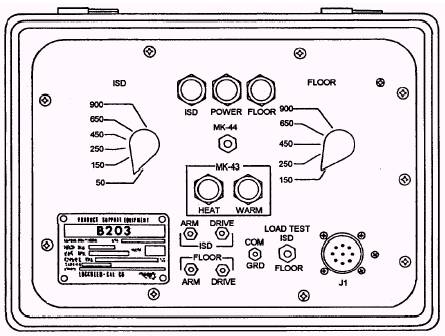

Figure 16-18.-B203 torpedo heat and control system test set.

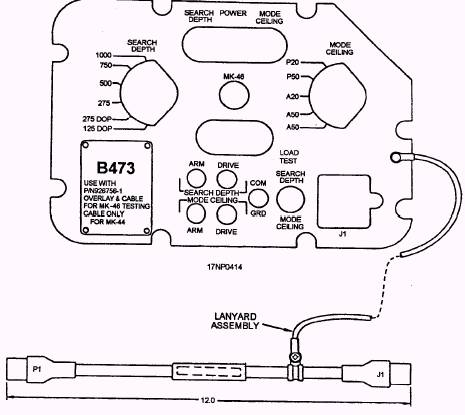

Figure 16-19.-B473 test set overlay.

perform circuit continuity tests on Mk 46 torpedo preset circuits. Both the B203 and B473 test sets are used with the P-3 aircraft.

TS-3519D/DSM TEST SET SIMULATOR

The TS-3519D/DSM test set simulator (fig. 16-20) is a manually programmable digital test set. It is used

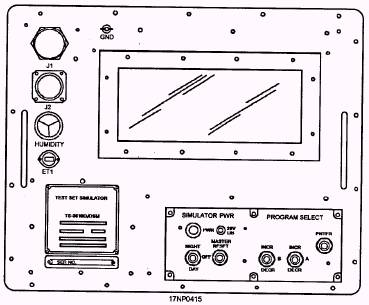

Figure 16-20.-TS-3519D/DSM test set simulator.

Figure 16-21.-TS-3519/DSM test set simulator.

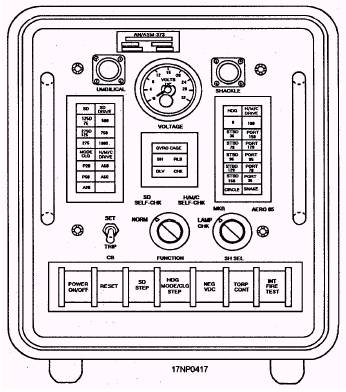

Figure 16-22.-AN/ASM-373A airborne torpedo presetter test set.

to functionally check the AGM-84 system prior to loading.
