MK 20 MODS/CBU-99/CBU-100, BOMB CLUSTER CONFIGURATIONS

The configurations of the Mk 20 Mods/CBU-99/ CBU-100 are listed in (table 1-4).

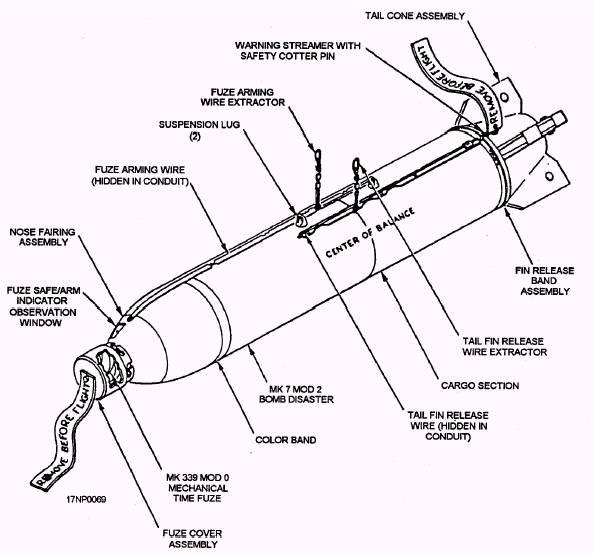

Figure 1-37.-Antitank bomb cluster Mk 20 Mods and CBU-99 and CBU-100.

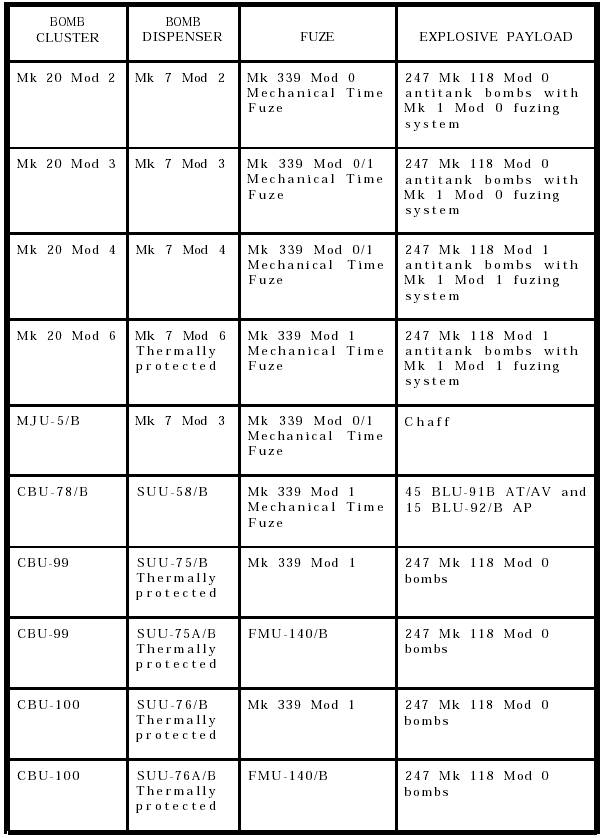

Table 1-4.-Bomb Cluster Mk 20 Mods and CBU-99 and CBU-100 Configurations

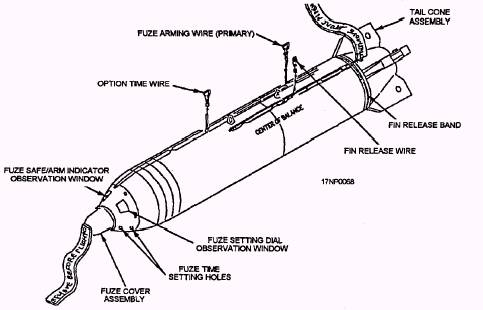

Figure 1-38.-Bomb cluster Mk 20 Mod 2 configuration.
