COUNTERS AND TOPS

In cabinetwork, the counters and tops are covered with a 1/16-inch layer of high-pressure plastic laminate. Although this material is very hard, it does not possess great strength and is serviceable only when it is bonded to plywood, particle board, or wafer wood. This base, or core material, must be smooth and is usually 3/4-inch thick.

Working Laminates

Plastic laminates can be cut to rough size with a table saw, portable saw, or saber saw. Use a fine-tooth blade, and support the material close to the cut. If no electrical power is available, you can use a finish handsaw or a hacksaw. When cutting laminates with a saw, place masking tape over the cutting area to help prevent chipping the laminate. Make cut markings on the masking tape.

Measure and cut a piece of laminate to the desired size. Allow at least 1/4-inch extra to project past the edge of the countertop surface. Next, mix and apply the contact bond cement to the underside of the laminate and to the topside of the countertop surface. Be sure to follow the manufacturer's recommended directions for application.

Adhering Laminates

Allow the contact bond cement to set or dry. To check for bonding, press a piece of waxed brown paper on the cement-coated surface. When no adhesive residue shows, it is ready to be bonded. Be sure to lay a full sheet of waxed brown paper across the countertop. This allows you to adjust the laminate into the desired position without permanent bonding. Now, you can gradually slide the paper out from under the laminate, and the laminate becomes bonded to the countertop surface.

Be sure to roll the laminate flat by hand, removing any air bubbles and getting a good firm bond. After sealing the laminate to the countertop surface, trim the edges by using either a router with a special guide or a small block plane. If you want to bevel the countertop edge, use a mill file.

METHODS OF FASTENING LEARNING OBJECTIVE: Upon completing this section, you should be able to identify the different types of fastening devices.

A variety of metal fastening devices are used by Seabees in construction. Although nails are the most commonly used fastener, the use of staples to attach wood structural members is growing. For certain operations, screws and bolts are required. In addition, various metal devices exist for anchoring materials into concrete, masonry, and steel.

The increasing use of adhesives (glues and mastics) is an important development in the building industry. Adhesives are used in combination with, or in place of, nails and screws.

NAILS

Nails, the most common type of metal fasteners, are available in a wide range of types and sizes. Basic Nail Types

Some basic types are shown in figure 3-75. The common nail is designed for rough framing. The box nail is used for toenailing and light work in frame construction.         The casing nail is used in finished carpentry work to fasten doors and window casings and other wood trim. The finishing nail and brad are used for light, wood-trim material and are easy to drive below-the surface of lumber with a nail set.

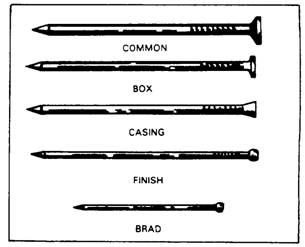

Figure 3-75.-Basic types of nails.

The size of a nail is measured in a unit known as a penny. Penny is abbreviated with the lowercase letter d. It indicates the length of the nail. A 6d (6-penny) nail is 2-inches long. A 10d (10-penny) nail is 3-inches long (figure 3-76). These measurements apply to common, box, casing, and finish nails only. Brads and small box nails are identified by their actual length and gauge number.

A nail, whatever the type, should be at least three times as long as the thickness of the wood it is intended to hold. Two-thirds of the length of the nail is driven into the other piece of wood for proper anchorage. The other one-third of the length provides the necessary anchorage of the piece being fastened. Protruding nails should be bent over to prevent damage to materials and injury to personnel.

There are a few general rules to be followed in the use of nails in building. Nails should be driven at an angle slightly toward each other to improve their holding power. You should be careful in placing nails to provide the greatest holding power. Nails driven with the grain do not hold as well as nails driven across the grain. A few nails of proper type and size, properly placed and properly driven, will hold better than a great many driven close together. Nails can generally be considered the cheapest and easiest fasteners to be applied.

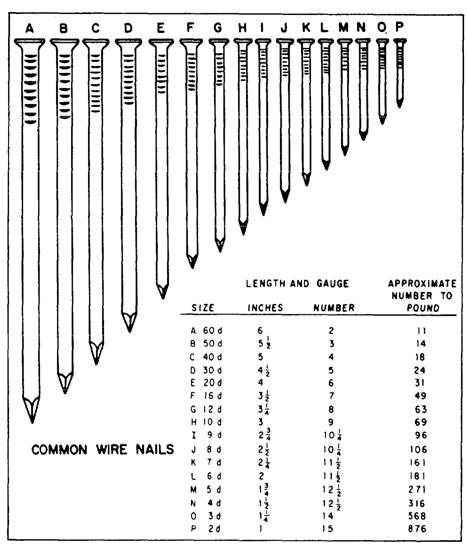

Figure 3-76.-Nail sizes given in "penny" (d) units.

Specialty Nails

Figure 3-77 shows a few of the many specialized nails. Some nails are specially coated with zinc, cement, or resin materials. Some have threading for increased holding power of the nails. Nails are made from many materials, such as iron, steel, copper, bronze, aluminum, and stainless steel.

Annular and spiral nails are threaded for greater holding power. They are good for fastening paneling or plywood flooring. The drywall nail is used for hanging drywall and has a special coating to prevent rust. Roofing nails are not specified by the penny system; rather, they are referred to by length. They are available in lengths from 3/4 inch to 2 inches and have large heads. The double-headed nail, or duplex-head nail, is used for temporary construction, such as form work or scaffolding. The double head on this nail makes it easy to pull out when forms or scaffolding are torn down. Nails for power nailing come in rolls or clips for easy loading into a nailer. They are coated for easier driving and greater holding power. Table 3-10 gives the general size and type of nails preferable for specific applications.
