STAPLES

Staples are available in a wide variety of shapes and sizes, some of which are shown in figure 3-78.

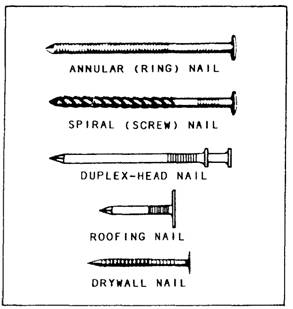

Figure 3-77.-Specialized nails.

Heavy-duty staples are used to fasten plywood sheeting and subflooring. Heavy-duty staples are driven by electrically or pneumatically operated tools. Light-duty and medium-duty staples are used for attaching molding and other interior trim. Staples are sometimes driven in by hand-operated tools.

SCREWS

The use of screws, rather than nails, as fasteners may be dictated by a number of factors. These may include the type of material to be fastened, the requirement for greater holding power than can be obtained by the use of nails, the finished appearance desired, and the fact that the number of fasteners that can be used is limited. Using screws, rather than nails, is more expensive in terms of time and money, but it is often necessary to meet requirements for superior results. The main advantages of screws are that they provide more holding power, can be easily tightened to draw the items being fastened securely together, are neater in appearance if properly driven, and can be withdrawn without damaging the material. The common wood screw is usually made of unhardened steel, stainless steel, aluminum, or brass. The steel may be bright finished or blued, or zinc, cadmium, or chrome plated. Wood screws are threaded from a gimlet point for approximately two-thirds of the length of the screw and are provided with a slotted head designed to be driven by an inserted driver. Wood screws, as shown in figure 3-79, are designated according to head style. The most common types are flathead, oval head, and

Figure 3-78.-Types of staples.

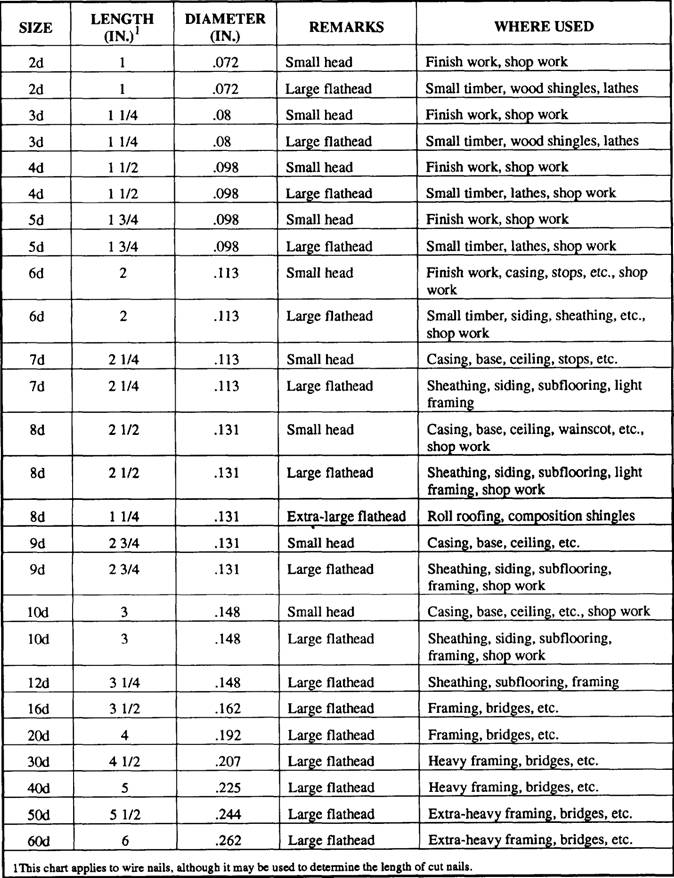

Table 3-10.-Size, Type, and Use of Nails

roundhead, as illustrated in that order in figure 3-79, All of these screws can have slotted or Phillips heads. To prepare wood for receiving the screws, bore a body hole the diameter of the screw to be used in the piece of wood that is to be fastened (figure 3-80). You should then bore a starter hole in the base wood with a diameter less than that of the screw threads and a depth of one-half or two-thirds the length of the threads to be anchored. The purpose of this careful preparation is to assure accuracy in the placement of the screws, to reduce the possibility of splitting the wood, and to reduce the time and effort required to drive the screw. Properly set slotted and Phillips flathead and oval head screws are countersunk sufficiently to permit a covering material to be used to cover the head. Slotted roundhead and Phillips roundhead screws are not countersunk, but they are driven so that the head is firmly flush with the surface of the wood. The slot of the roundhead screw is left parallel with the grain of the wood.

The proper name for a lag screw (shown in figure 3-79) is lag bolt or wood screw. These screws are often required in constructing large projects, such as a building. They are longer and much heavier than the common wood screw and have coarser threads that extend from a cone, or gimlet point, slightly more than half the length of the screw. Square-head and hexagonal-head lag screws are always externally driven, usually by means of a wrench. They are used when ordinary wood screws would be too short or too light and spikes would not be strong enough. Sizes of

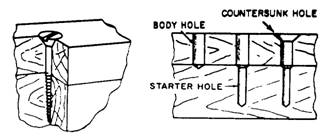

Figure 3-80.-Proper way to sink a screw.

lag screws are shown in table 3-11. Combined with expansion anchors, they are used to frame timbers to existing masonry.

Expansion shields, or expansion anchors as they are sometimes called, are used for inserting a predrilled hole, usually in masonry, to provide a gripping base or anchor for a screw, bolt, or nail intended to fasten an item to the surface in which the hole was bored. The shield can be obtained separately, or it may include the screw, bolt, or nail. After the expansion shield is inserted in the predrilled hole, the fastener is driven into the hole in the shield, expanding the shield and wedging it firmly against the surface of the hole.

For the assembly of metal parts, sheet metal screws are used. These screws are made regularly in steel and brass with four types of heads: flat, round, oval, and fillister, as shown in that order in figure 3-79.

Wood screws come in sizes that vary from 1/4 inch to 6 inches. Screws up to 1-inch in length increase by

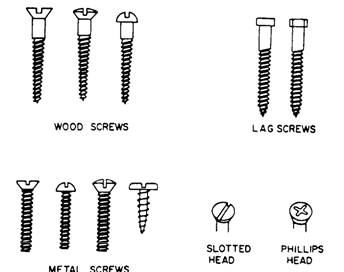

Figure 3-79.-Types of screws.

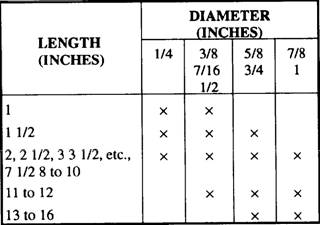

Table 3-1l.-Lag Screw Sizes

eighths, screws from 1 to 3 inches increase by quarters, and screws from 3 to 6 inches increase by half inches. Screws vary in length and size of shaft. Each length is made in a number of shaft sizes specified by an arbitrary number that represents no particular measurement but indicates relative differences in the diameter of the screws. Proper nomenclature of a screw, as shown in figure 3-81, includes the type, material, finish, length, and screw size number, which indicates the wire gauge of the body, drill or bit size for the body hole, and drill or bit size for the starter hole. Tables 3-12 and 3-13 provide size, length, gauge, and applicable drill and auger bit sizes for screws. Table 3-11 gives lengths and diameters of lag screws.

Figure 3-8l.-Types and nomenclature of wood screws.
