Example: An 80 Xc and a 60 resistance are in series with a 120V source, as shown in Figure 6.

Find:

1. Z

2. IT

3. pf

4. P

5. Q

6. S

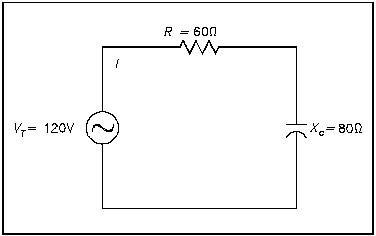

Figure 6 Series R-C Circuit

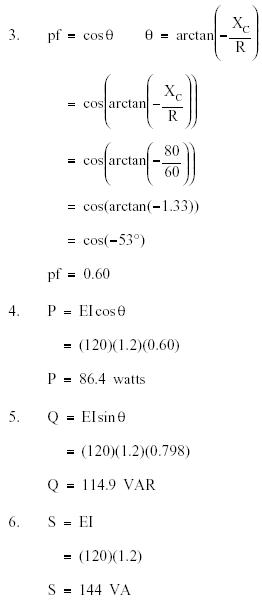

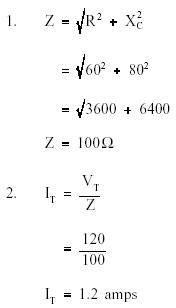

Solution:
