Example: A 30 resistance and a 40 Xc are in parallel with a 120V power source, as shown in Figure 7.

Find:

1. IT

2. Z

3. pf

4. P

5. Q

6. S

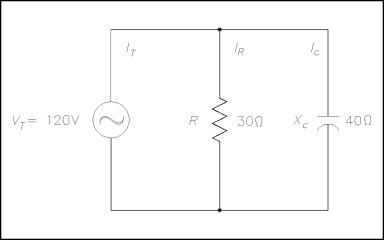

Figure 7 Parallel R-C Circuit

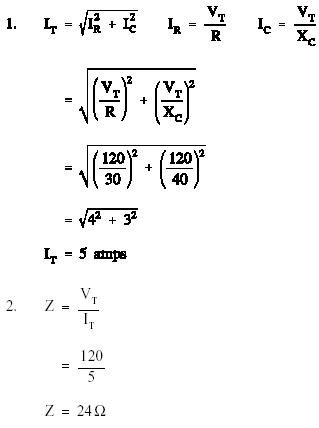

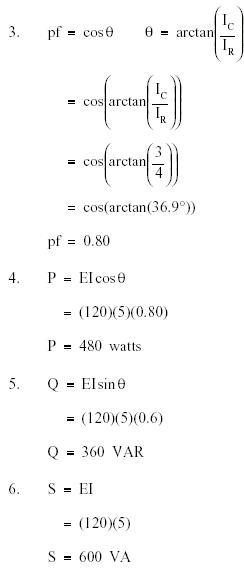

Solution:
