Example: An 8 resistance, a 40 X_L, and a 24 X_c are in series with a 60 Hz source with a current flow of 4 amps, as shown in Figure 8.

Find:

1. Z

2. V_T

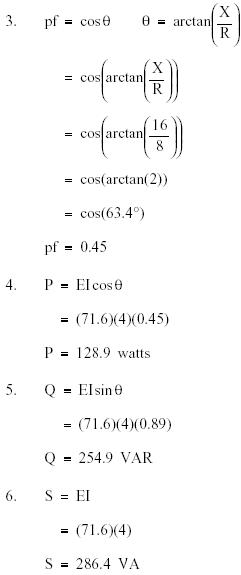

3. pf

4. P

5. Q

6. S

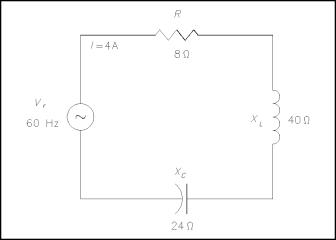

Figure 8 Series R-C-L Circuit
