All transformers have copper and core losses. Copper loss is power lost in the primary and secondary windings of a transformer due to the ohmic resistance of the windings. Copper loss, in watts, can be found using Equation (13-7).

where

Core losses are caused by two factors: hysteresis and eddy current losses. Hysteresis loss is that energy lost by reversing the magnetic field in the core as the magnetizing AC rises and falls and reverses direction. Eddy current loss is a result of induced currents circulating in the core.

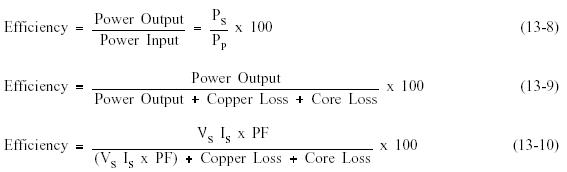

The efficiency of a transformer can be calculated using Equations (13-8), (13-9), and (13-10).

where

PF = power factor of the load

Example 1: A 5:1 step-down transformer has a full-load secondary current of 20 amps. A short circuit test for copper loss at full load gives a wattmeter reading of 100 W. If RP = 0.3, find RS and power loss in the secondary.

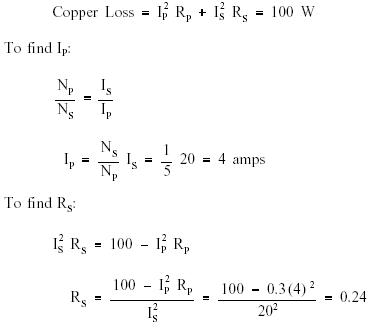

Solution:

Example 2: An open circuit test for core losses in a 10 kVA transformer [Example (1)] gives

a reading of 70 W. If the PF of the load is 90%, find efficiency at full load.

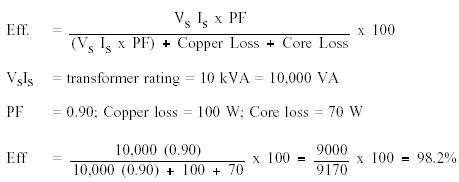

Solution:
