Operation Under No-Load

If the secondary of a transformer is left open-circuited (Figure 6), primary current is very low and is called the no-load current. No-load current produces the magnetic flux and supplies the hysteresis and eddy current losses in the core. The no-load current (IE) consists of two components: the magnetizing current (I.) and the core loss (IH). Magnetizing current lags applied voltage by 90, while core loss is in phase with the applied voltage (Figure 6b). Vp and Vsare shown 180 out of phase. IH is very small in comparison with Im, and Im is nearly equal to IE.No-load current, IE,is also referred to as exciting current.

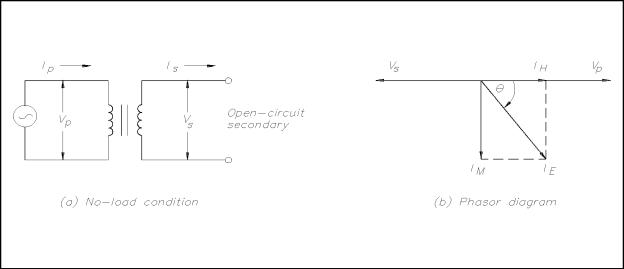

Figure 6 Open-Circuit Secondary

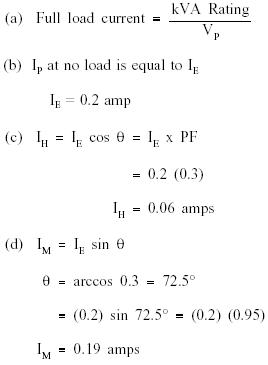

Example: When the secondary of a 120/440 V transformer is open, primary current is 0.2 amps at a PF of .3. The transformer is a 5 kVA transformer. Find: (a) IP, (b) IE, (c) IH, and (d) Im
