When you are drawing circles and arcs, it is important that the lines produced with the compass are the same weight as corresponding pencil lines. Since you cannot exert as much pressure on the compass as you can with pencils, you should use a compass lead that is

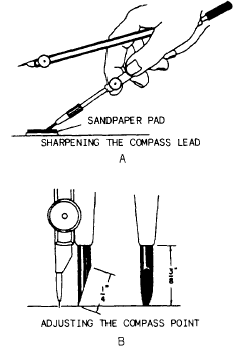

Figure 3-7.-Sharpening the compass lead and adjusting the point.

about one grade softer than the pencil used for corresponding line work. For dim construction lines, use 4H to 6H leads. Avoid using leads that are too short.

The compass lead should be sharpened with a single elliptical face, as shown in figure 3-7, view A. A sandpaper pad works best for sharpening compass leads. The elliptical face of the lead is normally placed in the compass so that it faces outward from the other compass leg. Adjust the shoulder-end needlepoint so that the point extends slightly farther than the lead (fig. 3-7, view B). With the needlepoint pressed lightly in the paper, the compass should be centered vertically when the legs are brought together.

Bow compasses and pivot joint compasses are used in the same manner. To draw a circle with a compass, lightly press the needlepoint into the drawing paper and rotate the marking leg around it. Always rotate the compass clockwise. As you rotate, lean the compass slightly forward. With a little practice, you will find that you can easily draw smooth circles using only the thumb and forefinger of one hand. It is important that you use an even pressure as you rotate the compass. You may find it necessary to rotate the compass several times to produce a circle with a uniform dense black line.

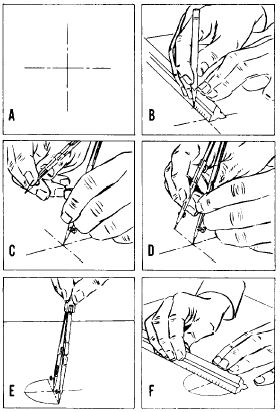

When you wish to set the compass to draw a circle of a given diameter, use a piece of scratch paper and follow the steps listed below, referring to figure 3-8.

2. With the straightedge as a base, use a triangle and draw a vertical line intersecting the horizontal line (fig. 3-8, view A).

3. Measure the radius of the circle with a scale, as shown in figure 3-8, view B, and draw a second vertical line from this point.

4. Set the needlepoint at the intersection of the first vertical line and the horizontal line (fig. 3-8, view C). This is the center of the circle.

5. Set the marking leg to fall on the intersection of the second vertical line and the horizontal line (fig. 3-8, view D).

6. Draw a half circle with the compass fig. 3-8, view E).
