Non-isometric Lines. If you examine the isometric drawing shown in figure 5-39, you will note that each line in the drawing is parallel to one or another of the legs of the isometric axis. You will also notice that each line is a normal line in the multi-view projection. Recall that a normal line is a line that, in a normal multi-view projection, is parallel to two of the planes of projection and perpendicular to the third. Thus,

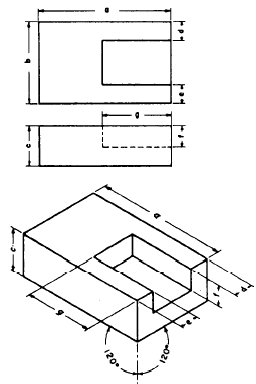

Figure 5-39.-Use of "box construction" in isometric drawing.

Figure 5-40.-A non-isometric line (AB) in an isometric projection.

a NON-ISOMETRIC LINE is a line that is not parallel to any one of the three legs of the isometric axis. It is not a normal line in a normal multi-view projection of the object.
