Noncircular Curves in Isometric. A line that appears as a noncircular curve in a normal multi-view view of an object appears as a non-isometric

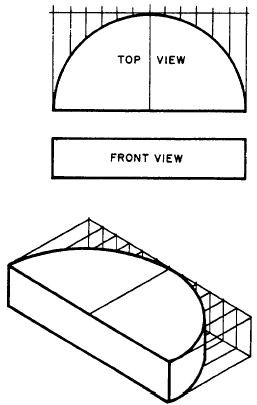

Figure 5-43.-Method of drawing a noncircular curve in isometric.

line in an isometric drawing. To transfer such a line to an isometric drawing, you must plot a series of points by measuring along normal lines in the multi-view view and transferring these measurements to corresponding isometric lines in the isometric drawing.

The upperpart of figure 5-43 shows a two-view multi-view projection of a block with

Figure 5-42.-A circle on a normal multi-view view appears as an ellipse in an isometric drawing.

an elliptical edge. To make an isometric drawing of this block, draw the circumscribing rectangle on the top multi-view view, lay off equal intervals as shown, and draw perpendiculars at these intervals from the upper horizontal edge of the rectangle to the ellipse. Then draw the rectangle in isometric, as shown below, and plot a series of points along the elliptical edge by laying off the same perpendiculars shown in the top multi-view view. Draw the line of the ellipse through these points with a french curve.

Alternate Positions of Isometric Axis. Up to this point, the isometric axis has been used with the lower leg vertical. The axis may, however, be used in any position, pro-vided the angle between adjacent legs is always 120 degrees. Figure 5-44 shows how varying the position of the axis varies the view of the object.
