Fiber Glass Duct

A fiber glass duct is constructed of molded glass fibers covered with a thin film coating. This coating is usually of aluminum, but vinyl or other plastic coatings are sometimes used. Since they are made of glass fibers, the ducts are inherently insulated. Also, they are primarily used where insulation is a factor. Fiber glass meets military specifications for a flame spread rating of less than 25 and a smoke development rating of less than 50 for insulating material. The thickness of fiber glass ducts allowed for use in Navy installations must range between 3/4 inch to 2 inches, depending upon the size of the duct.

The nature of a fiber glass duct requires that it be supported with 1-inch by 1/16-inch galvanized steel strap hangers shaped to fit the duct. For round ducts, these supports must be on not less than 6-foot centers. Rectangular and square ducts up to 24-inch spans may be supported on 8-foot centers. Ducts larger than 24 inches require support on 4-foot centers.

The applicability of fiber glass ducts on heating systems is sometimes limited by the adhesive used on the protective outer covering to cause it to adhere to the fiber glass material. Unless aluminum surface duct is used, the specification of the duct should be checked carefully to ensure that it does not fail when heated over 250F.

Fiber glass ducts can be molded into a variety of shapes for special uses. Round ducts and reducers are available from manufacturers' stock. For most purposes, however, the duct is supplied flat in the form of a board, with V-grooves cut into the inner surface to allow folding to make a rectangular section. The ends of the boards are molded so that when the rectangular duct is formed, two sections of the same size fit together in a shiplap joint to ensure a tight joint in positive alignment. It is important to exercise care in selecting a board of adequate size to complete the desired duct before beginning cutting and grooving operation. In all cases, the inside diameter of the duct is the determining factor for board size. To determine board size see table 13-4.

To form a rectangular duct, the flat duct board is measured accurately and grooves are cut at the proper locations. The board is then folded into a rectangular shape. When the board is cut, an overlapping tab is left and this is then pulled tight and stapled. Tape is applied and the joint is heat sealed. Joints between sections are made by pulling the shiplap end sections together.

The joint is then completed by stapling, taping, and heat sealing the junction as shown in figure 13-3.

Sheet metal ducts expand as they become hot and contract as they become cold. The degree to which expansion and contraction becomes an installation factor depends upon the temperature of the air surrounding the ducts and the temperature of the air moving through the ducts. Fabric joints are often used to absorb this duct movement. Additionally, fan noise and furnace or air-conditioner noise tends to travel along the

Table 13-4.-Duct Board Length Selection Chart

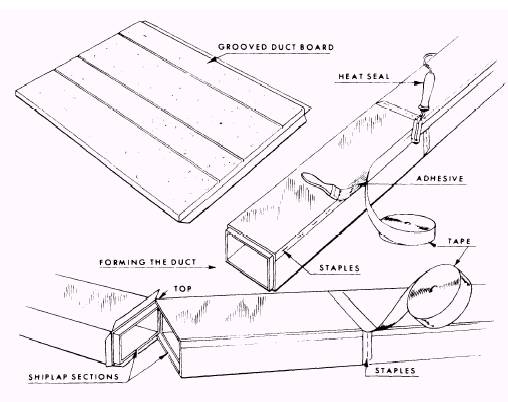

Figure 13-3.-Forming rectangular fiber glass ducts from duct board.

metal ducts. Therefore, fabric joints (usually constructed of heavy canvas) are used to join the branch ducts to the plenum.
