PREPARATION FOR BALANCING

The following preliminary procedure is necessary before proper balancing can begin. These steps are general in nature and should apply to most situations.

1. Review applicable mechanical drawings and job specifications. This review will provide necessary data on the ducts, air handlers, and outlets. Information pertaining to design airflow can also be taken from these drawings.

2. Prepare a simple working sketch of the entire duct system showing dimensions, airflow volumes and velocities, and the location of all components such as dampers, fans, coils, and filters. Duct outlets should be numbered on the sketch starting at the farthest one from the fan

Figure 13-11.-Rotating vane anemometer.

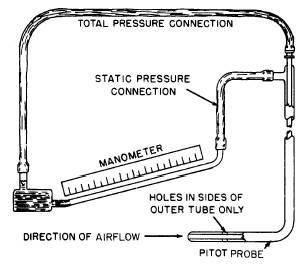

Figure 13-10.-Inclined manometer with pitot probe.

and working back toward the fan. (See fig. 13-12.) The type of diffuser and the air delivery design of each outlet should be noted.

3. Obtain data pertinent to motors, fans, diffusers, and grilles that are not given on drawings. This can usually be taken from the manufacturer's identification plate located on the component. This information is useful during the balancing process for comparing measured results with design conditions.

4. Make a visual check of the system to ascertain that all fans are rotating correctly. Also, that air filters are clean and properly installed.

5. Place all dampers in the open position. This includes volume balancing dampers, splitter dampers, outlet dampers, and fire dampers.

6. Check all necessary instruments prior to starting the balancing procedure. Always follow the manufacturer's recommendations for checking the calibration of instruments.

PROCEDURES FOR BALANCING

The procedures required for balancing most systems are similar. Balancing is a rigorous technique that, if properly done, yields excellent results. As with any set of procedures, each operation is necessary and must be performed in the correct sequence. The following procedures are general in nature and apply to most systems.
