Determine Fan Performance

The first step of the procedure is to determine fan performance. The purpose for this is to ensure that there is sufficient static pressure and air volume being handled at the fan before balancing is started. The fan's revolutions per minute (rpm), the voltage and amperage of the fan motor, the fan static pressure, and the system's total airflow are indications of fan performance.

The fan rpm can be measured by a tachometer as shown in figure 13-13. You should take several readings to ensure an accurate reading. The results can be compared with the design conditions to determine performance.

You should use a multimeter to determine if the operating voltage and amperage of the fan motor are within the range of rated voltage and amperage indicated on the motor nameplate. The measured results can either be compared or used to calculate the brake horsepower. Use the manufacturer's recommended calculation to determine the brake horsepower.

You can determine the fan static pressure by attaching a velometer and static pressure probe to test tap holes located on the inlet and discharge duct of the fan, as shown in figure 13-14. Fan static pressure is the static pressure at the outlet minus the total pressure in the fan inlet. This

Figure 13-12.-Duct system working sketch.

Figure 13-13.-Measuring fan rpm.

Figure 13-14.-Fan static pressure measurement.

test may not be necessary in the field; however, if it is, the results can be compared with the manufacturer's fan curve and system specifications to determine fan performance.

You can quickly locate problems caused by blockages in duct systems by performing static pressure readings. The total air volume in cubic feet per minute (cfm) for a fan can be determined by the following procedures:

1. Downstream of the air handler, establish a point along the duct that has the longest straight run and drill test holes into the duct. Holes should be far enough downstream from any elbows or from the fan discharge to minimize the effect of turbulence. The holes must be closed and sealed after the test is completed.

2. Take velocity pressure readings using a pitot probe and manometer or velometer. For rectangular ducts, velocity readings are taken at the center of equally divided areas. On round ducts, readings are taken across each of two diameters on lines at right angles to each other. (See fig. 13-15.)

3. Calculate the cubic feet of air per minute by multiplying the average velocity pressure in feet per minute found in the above reading by the cross-sectional area of the duct in square feet. Total airflow in cfm = Average velocity in fpm x duct crosssectional area in square feet.

The results are compared with design conditions to determine performance. Measured cfm should be approximately equal to design cfm plus 10 percent to allow for leakage.

In the event that fan performance is not consistent with design conditions, the necessary adjustments or repairs should be made at this point in the balancing procedure. For example,

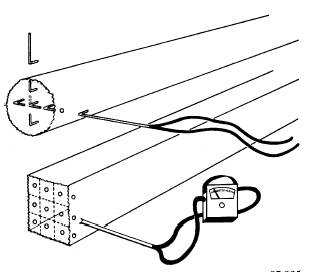

Figure 13-15.-Velocity pressure measurement.

the fan speed can be changed by adjusting the variable diameter motor pulley. Be careful to avoid operating the fan at a speed that overloads the motor. After adjustments or repairs, tests should be repeated to verify that the design conditions have been attained. Total air volume measurements should be repeated for all airhandling units on branch, return, and exhaust duct systems.
