Advantages of Diagraming

Precedence networks are easy to draw because all the activities can be placed on small cards, laid out on a flat surface, and easily manipulated until a realistic logic is achieved. It is also easy to show the interrelationships and forward progress of the activities. Just

Figure 9-25.-Merge.

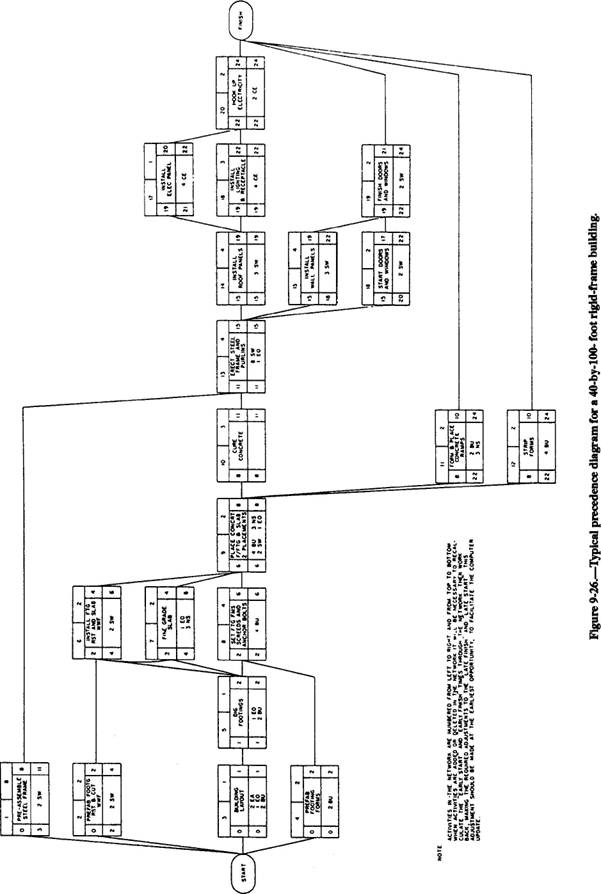

draw connector lines. Figure 9-26 shows a typical precedence diagram for a 40-by- 100-foot rigid-frame building.

RECOMMENDED READING LIST NOTE

Although the following references were current when this TRAMAN was published, their continued currency cannot be assured. You therefore need to ensure that you are studying the latest revision.

Facilities Planning Guide, NAVFAC P-437, Naval Facilities Engineering Command, Alexandria, Va., 1982.

Operations Officer's Handbook, COMCBPAC/ COMCBLANTINST 5200.2A, Commander, Naval Construction Battalions, U.S. Pacific Fleet, Pearl Harbor, Hawaii, and Commander, Naval Construction Battalions, U.S. Atlantic Fleet, Norfolk, Va., 1988.

Seabee Planner's and Estimator's Handbook, NAVFAC P-405, Chapter 5, Naval Facilities Engineering Command, Alexandria, Va., 1983.
