To learn the operation of the lathe, you must be familiar with the names and functions of the principal parts. Lathes from different manufacturers differ somewhat in construction, but all are built to perform the same general functions. As you read the description of each part, find its location on the lathe in figure 9-1 and the figures that follow. (For specific details of features of construction and operating techniques, refer to the manufacturers technical manual for your machine.)

Bed and Ways

The bed is the base or foundation of the parts of the lathe. The main feature of the bed is the ways, which are formed on the beds upper surface and run the full length of the bed. The ways keep the tailstock and the carriage, which slide on them, in alignment with the headstock.

Headstock

The headstock contains the headstock spindle and the mechanism for driving it. In the belt-driven type, shown in figure 9-2, the driving mechanism consists of

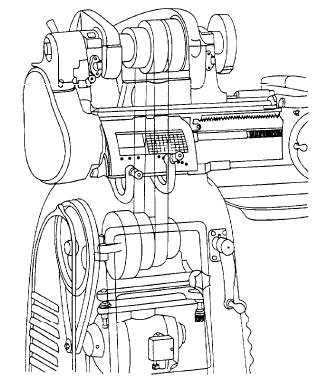

Figure 9-2.Belt-driven type of headstock.

a motor-driven cone pulley that drives the spindle cone pulley through a drive belt. The spindle can be rotated either directly or through back gears.

When the headstock is set up for direct drive, a bull-gear pin, located under a cover to the right of the spindle pulley, connects the pulley to the spindle. This connection causes the spindle to turn at the same speed as the spindle pulley.

When the headstock is set up for gear drive, the bull-gear pin is pulled out, disconnecting the spindle pulley from the spindle. This allows the spindle to turn freely inside the spindle pulley. The back-gear lever, on the left end of the headstock, is moved to engage the back-gear set with a gear on the end of the spindle and a gear on the end of the spindle pulley. In this drive mode, the drive belt turns the spindle pulley, which turns the back-gear set, which turns the spindle. Each drive mode provides four spindle speeds, for a total of eight. The back-gear drive speeds are less slower than the direct-drive speeds.

Tailstock

The primary purpose of the tailstock is to hold the dead center to support one end of the work being

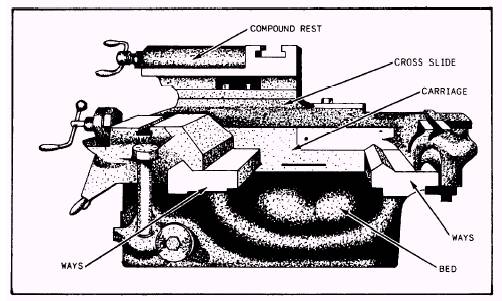

Figure 9-3.Side view of a carriage mounted on a bed.

machined. However, the tailstock can also be used to hold tapered shank drills, reamers, and drill chucks. It can be moved on the ways along the length of the bed and can be clamped in the desired position by tightening the tailstock clamping nut. This movement allows for the turning of different lengths of work. The tailstock can be adjusted laterally (front to back) to cut a taper by loosening the clamping screws at the bottom of the tailstock. (see fig. 9-1.)

Before you insert a dead center, drill, or reamer, carefully clean the tapered shank and wipe out the tapered hole of the tailstock spindle. When you hold drills or reamers in the tapered hole of the spindle, be sure they are tight enough so they will not revolve. If you allow them to revolve, they will score the tapered hole and destroy its accuracy.

Carriage

The carriage is the movable support for the crossfeed slide and the compound rest. The compound rest carries the cutting tool in the tool post. Figure 9-3 shows how the carriage travels along the bed over which it slides on the outboard ways.

The carriage has T-slots or tapped holes to use for clamping work for boring or milling. When the carriage is used for boring and milling operations, carriage movement feeds the work to the cutting tool, which is rotated by the headstock spindle.

You can lock the carriage in any position on the bed by tightening the carriage clamp screw. But you do this only when you do such work as facing or parting-off, for which longitudinal feed is not required. Normally the carriage clamp is kept in the released position. Always move the carriage by hand to be sure it is free before you engage its automatic feed.

Apron

The apron is attached to the front of the carriage and contains the mechanism that controls the movement of the carriage and the crossslide.

Feed Rod

The feed rod transmits power to the apron to drive the longitudinal feed and crossfeed mechanisms. The feed rod is driven by the spindle through a train of gears. The ratio of feed rod speed to spindle speed can be varied by using change gears to produce various rates of feed.

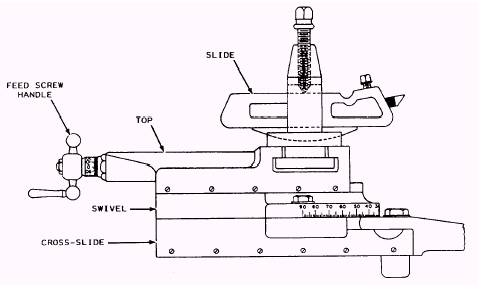

Figure 9-4.Compound rest.

The rotating feed rod drives gears in the apron; these gears in turn drive the longitudinal feed and crossfeed mechanisms through friction clutches.

Some lathes do not have a separate feed rod, but use a spline in the lead screw for the same purpose.

Lead Screw

The lead screw is used for thread cutting. It has accurately cut Acme threads along its length that engage the threads of half-nuts in the apron when the half-nuts are clamped over it. The lead screw is driven by the spindle through a gear train. Therefore, the rotation of the lead screw bears a direct relation to the rotation of the spindle. When the half-nuts are engaged, the longitudinal movement of the carriage is controlled directly by the spindle rotation. Consequently, the cutting tool is moved a definite distance along the work for each revolution that the spindle makes.

Crossfeed Slide

The crossfeed slide is mounted to the top of the carriage in a dovetail and moves on the carriage at a right angle to the axis of the lathe. A crossfeed screw allows the slide to be moved toward or away from the work in accurate increments.
